SW7000 MONO

Description

Ducati's  modern design swing gate opener

Single wing swing gate up to  2m/6,5ft

• Ducati's modern design DC gate opener
• featuring DUCO SAFE: obstacle detection safety system guarantees maximal safety of use to your family. Original Made in Italy.
• For those who desire a very uncomplicated gate opener, easy to be installed
• Ideal for  double wing swing gate

Kit Contents

• 1xSW400 - 400mm stroke linear actuators

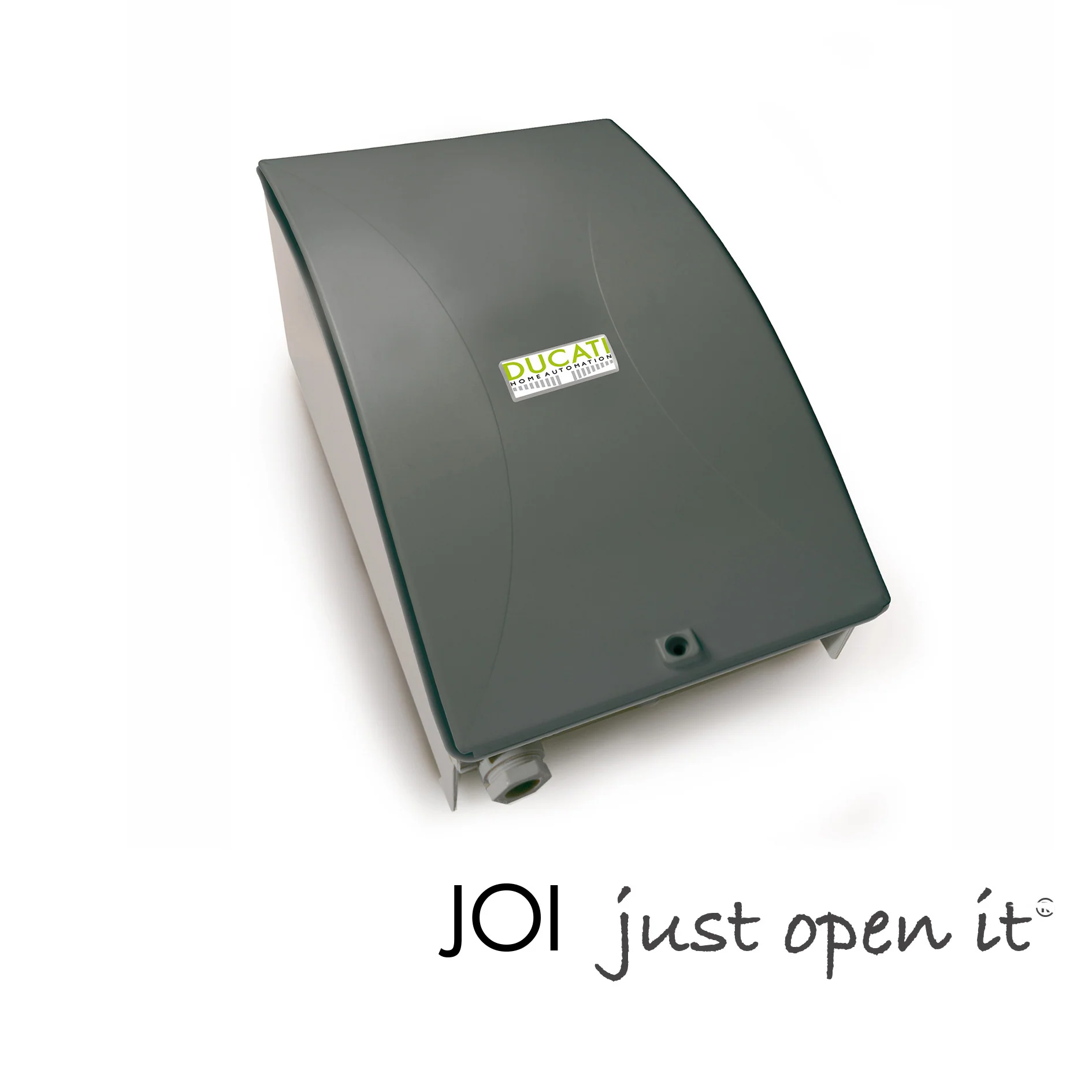

• 1x7855Rol - Large control box with electronic board CTH42+ transformer

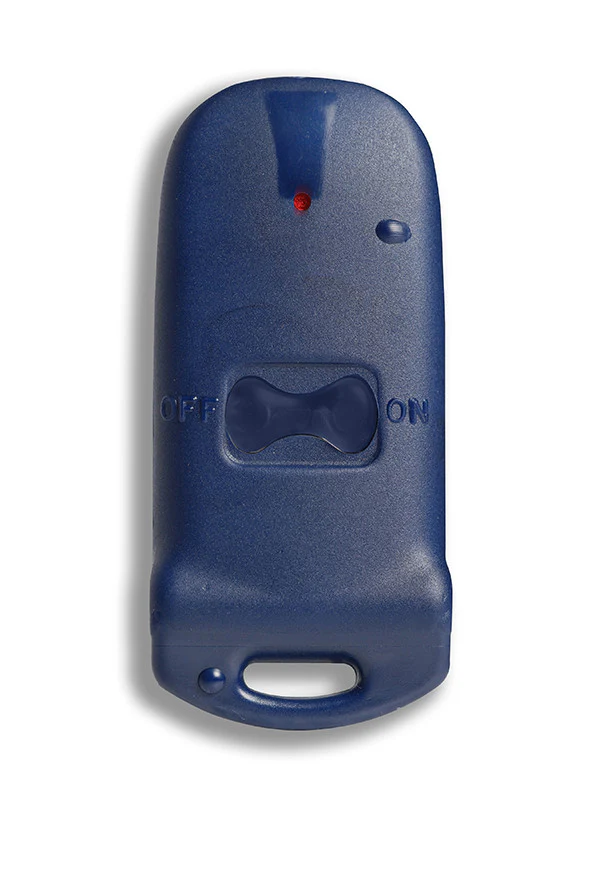

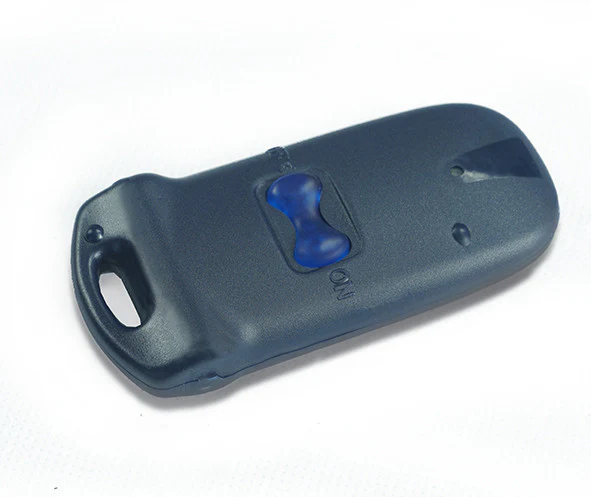

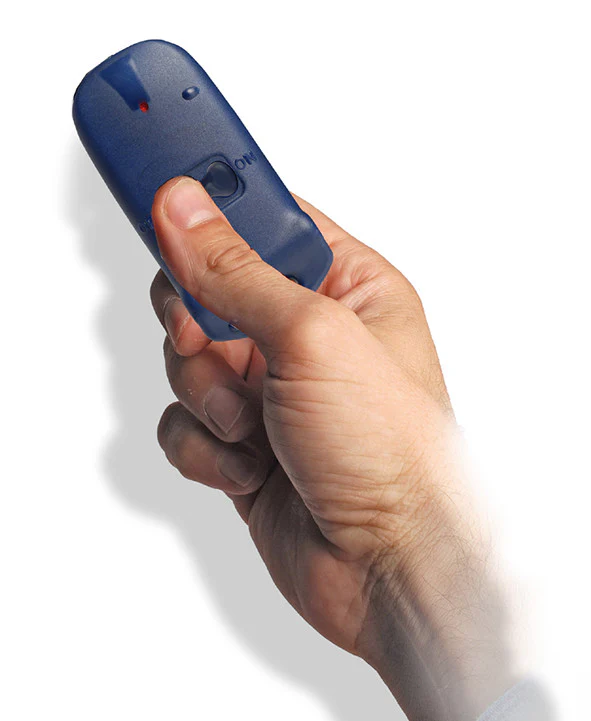

• 2x 6203Roll - 2 buttons 433 Mhz rolling code transmitters

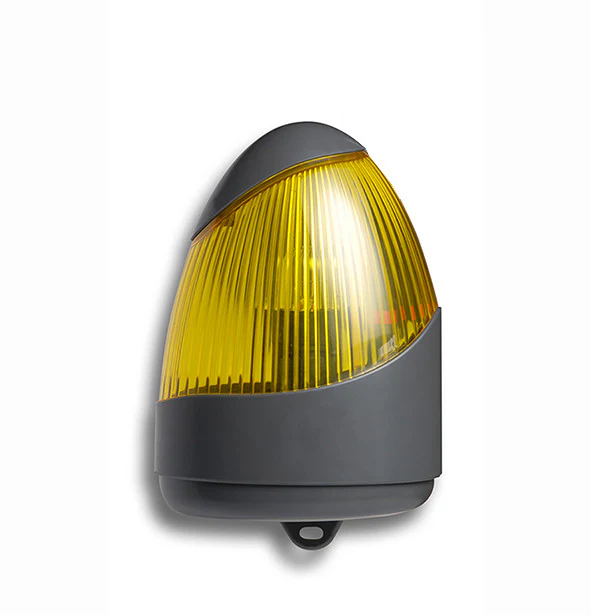

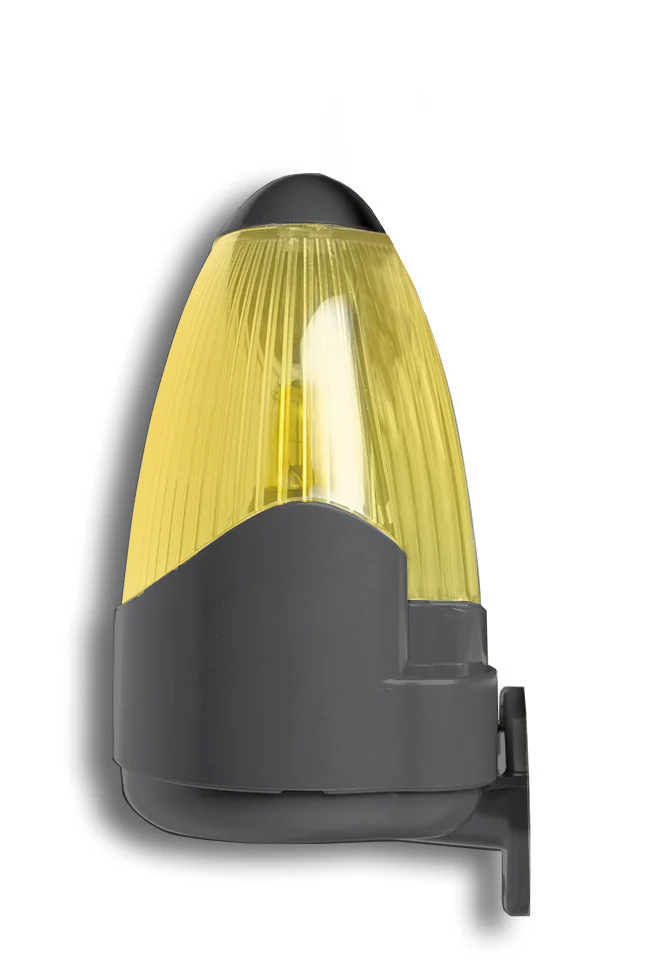

• 1x SW7500 - blinking light 12V

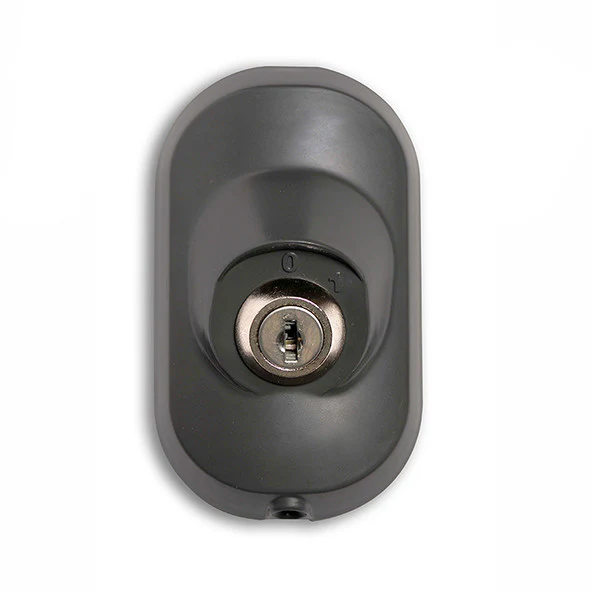

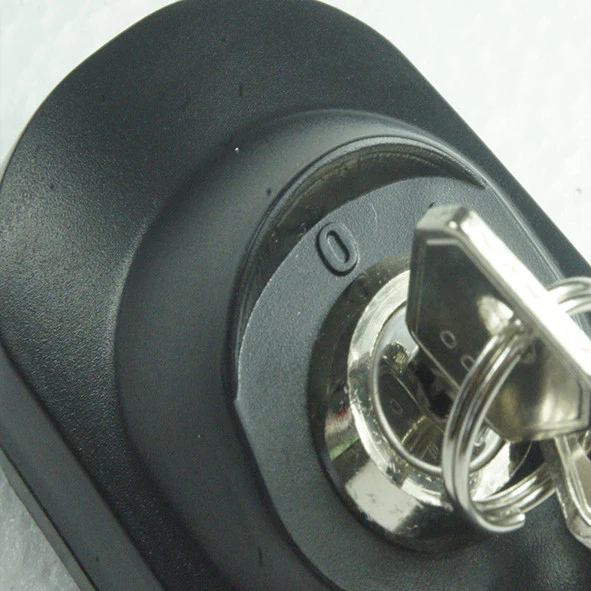

• 1x SW5000 - key switch
• 1 set of actuators fixing plates
• 1x instruction manual

Features

AUTO-LOCK TECHNOLOGY

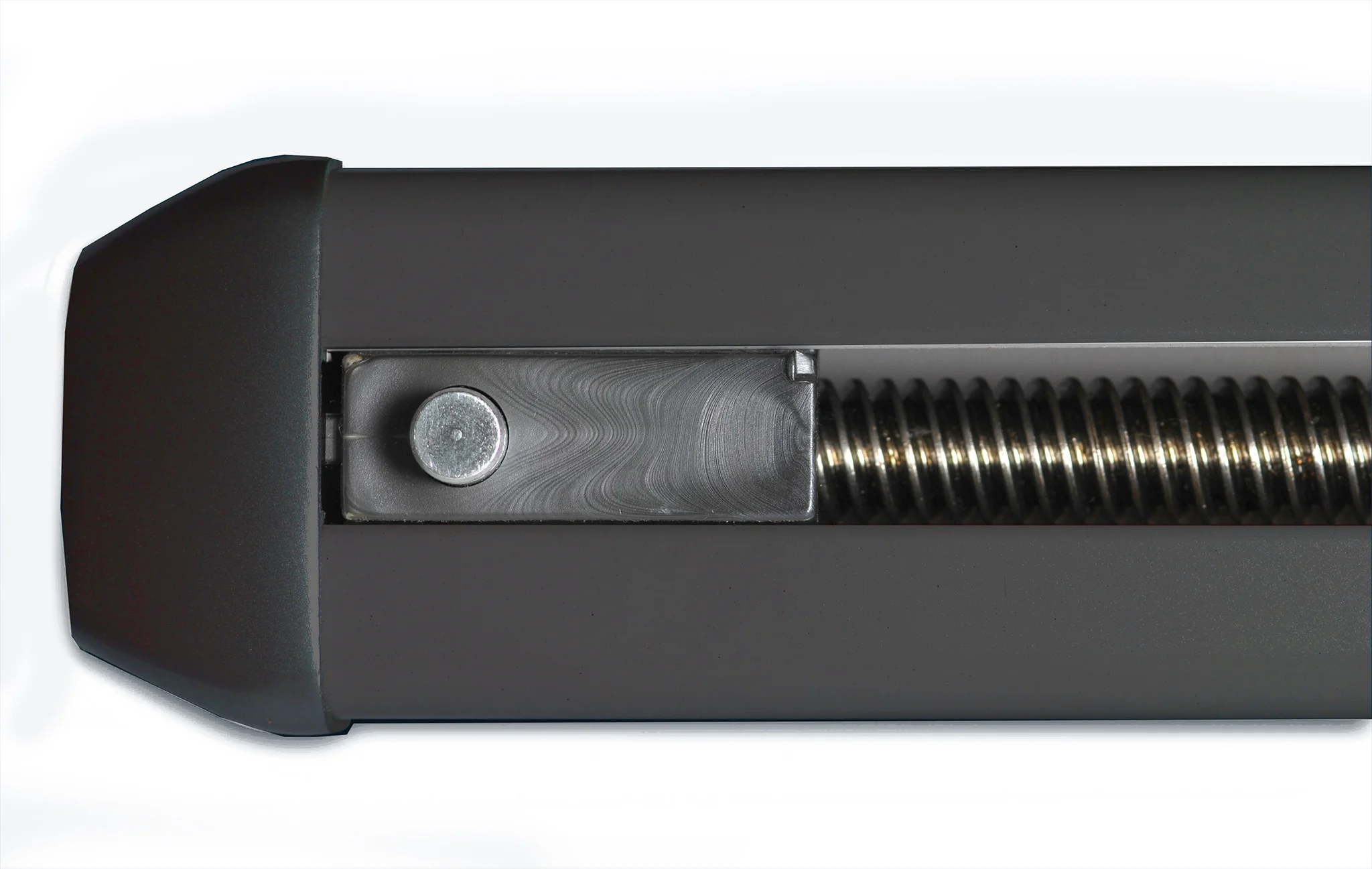

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation

DUCO SAFE

Obstacle detection safety system guarantees maximal safety of use to your family

• Ideal for a safe, quick and easy  installation: the system works in DC current and is electrocution risk-free.
• Possibility of connecting an external timed courtesy light (example: garden light)
• 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with adjustable time (you can vary the pause time from 1 to 100 seconds)
• Control unit with integrated battery housing compartment: can fit any 12v battery up to maximal dimension : 9cm x 15cm x 9,5cm h
•  Can work independently in case of power failure: by adding the external battery charger module C/M/BAT *and a 12V battery*. ( * = are not included in this package and must be added to the kit)
• Easy  self-storing  of the remotes controls by pushing one button
• Adjustable motor power/ obstacle detection sensitibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy:  just need to rotate  potentiometer related to each motor.
• Pedestrian opening (1 partial opening of one wing to allow the pedestrian crossing) this feature can be controlled by remote control or wired control (for example by a key switch)
• Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
• After sale service and assistance provided directly by manufacturer without intermediaries in order to provide quick and immediate solution to any demand.
• The gate is automatically locked in closed position (irreversibile system).

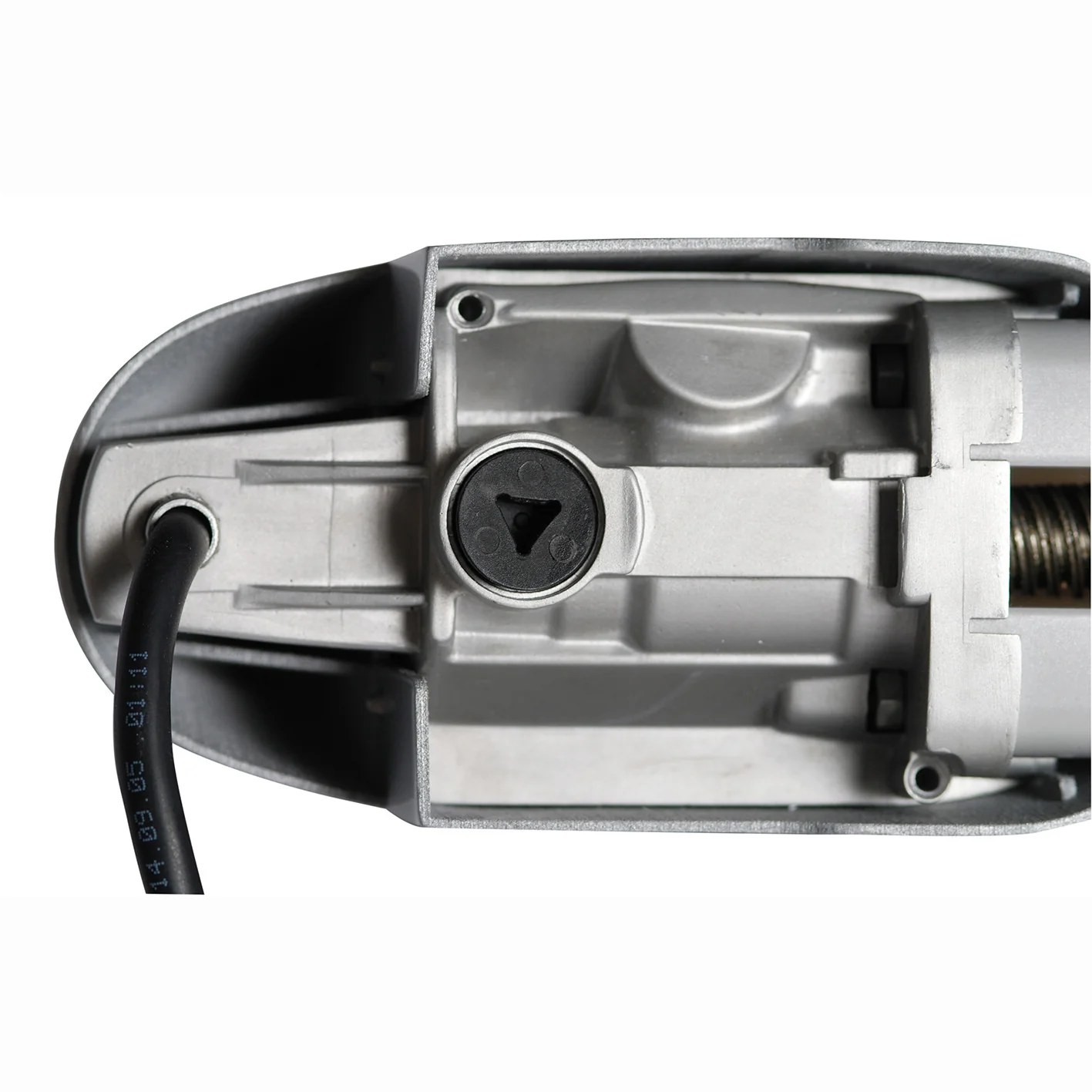

• Manual release system by universal triangular key
• Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)

• CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
• Totally in house designed software and hardware are focused on reduce energy consumption and with attention to the absolute reliability using innovative components of the latest generation as our High quality radio receiver hybrid
• Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

Technical data

ACTUATOR  TECHNICAL DATA

ELECROMECHANICAL TELESCOPIC  ACTUATOR SW400

Motor power supply	12V
dc motor	60W
max pushing & power	1200N
Stroke	400mm
motor speed	1,5 cm/sec
telescopic actuator	√
working cycles limit	continuous use/ no limits
working temperature	-20°C/+50°C
max wing length	2m/6.5ft
max.wing weight	200kg/441lb
max. opening angle	125°
automatic wing lock	√ irreversible actuator
manual release system	√ by triangular key
Compatible with  gate opening towards outside	√

NOTE: the actuator will stop by amperometric detection system: it therefore requires  mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model SW400 in "FC" version are featured with on-board mechanical limits for the open wing position.

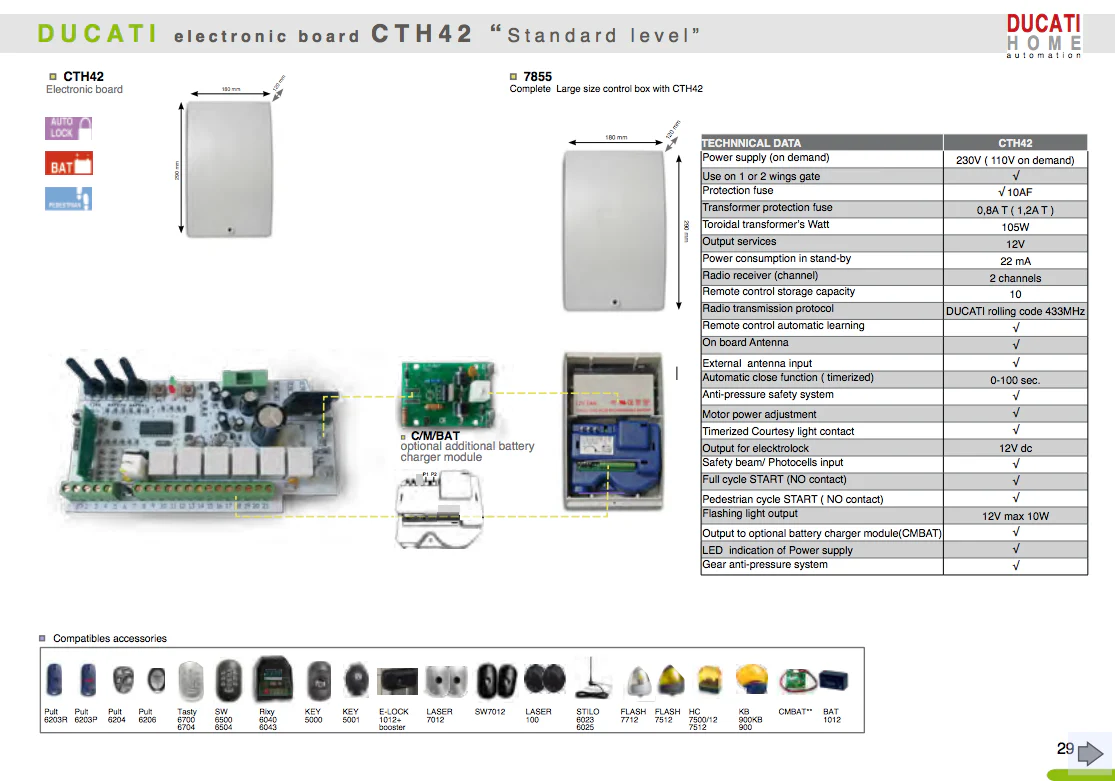

CTH42 ELECTRONIC BOARD TECHNICAL DATA

Main power supply	230-240V /50-60Hz or (110V/60Hz) (both variant of toroidal transformer are available. Select the desired version while ordering)
toroidal transformer's Watts	105W
protection fuse	√10AF
transformer protection fuse	0,8AT (1,2AT for 110V transformer)
use on single or double wing gate	√
output services	12V
stand-by power consumption	12mA
radio receiver	2 channels ( 1 for full cycle opening, 1 for pedestrian access- partial 1 wing opening)
remote controls channels storage capacity	10 codes
radio transmission protocol	DUCATI rolling code
radio frequency	433,92MHz
remote control automatic learning	√
On board antenna	√
external antenna input	√
automatic closure working mode	√ with adjustable pause time up to 100 sec.
step by step working	√ one pulse to open; one pulse to close
motor power adjustment	√ by potentiometer
Obstacle detection safety system(DUCO SAFE)	obstacle detection
In compliance with EU-CE norms	√
timerized courtesy light output	√ max 10W 12V lamp
flashing light output	√ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening
electric lock output	√ ac(warning the electric lock is incompatible with/while the board is powered by back-up battery)
safety beam-photocells input (NC contact)	√ NC normally closed contact
A full cycle START input(NO contact)	√
pedestrian cycle START input ( N contact)	√
output for optional additional back-up battery charge management & module CMBAT	√

Manual

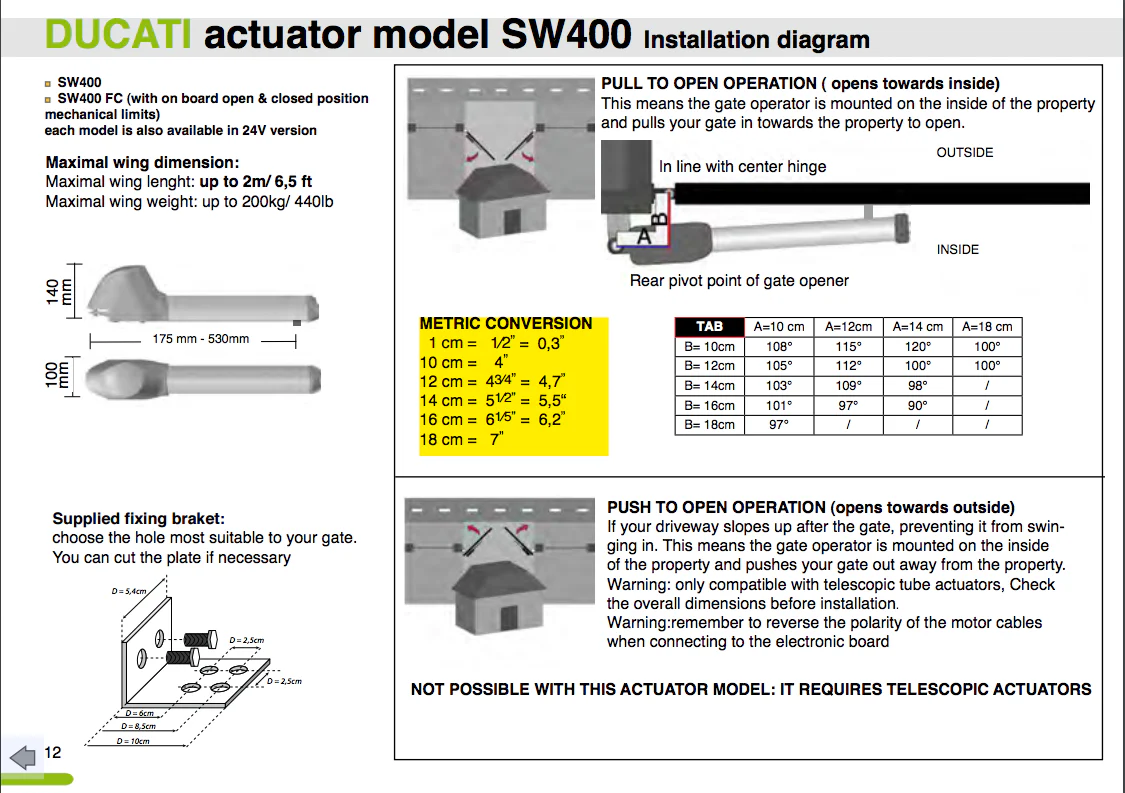

CLICK HERE to download the SW400 actuator's installation diagram

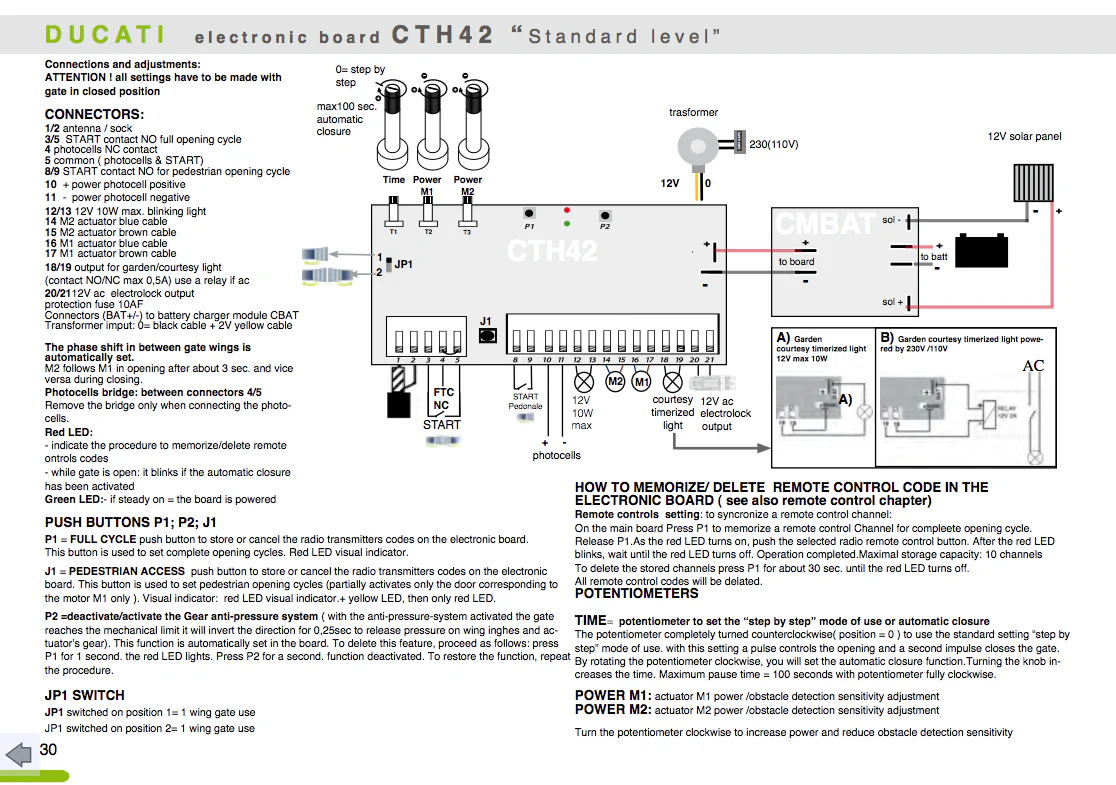

CLICK HERE  to download the CTH42 electronic board wiring diagram

CLICK HERE to download full swing gate openers installation manual
