SLIDE 443 SOLAR (KIT)

Description

SLIDE443 SOLAR powered by solar panel

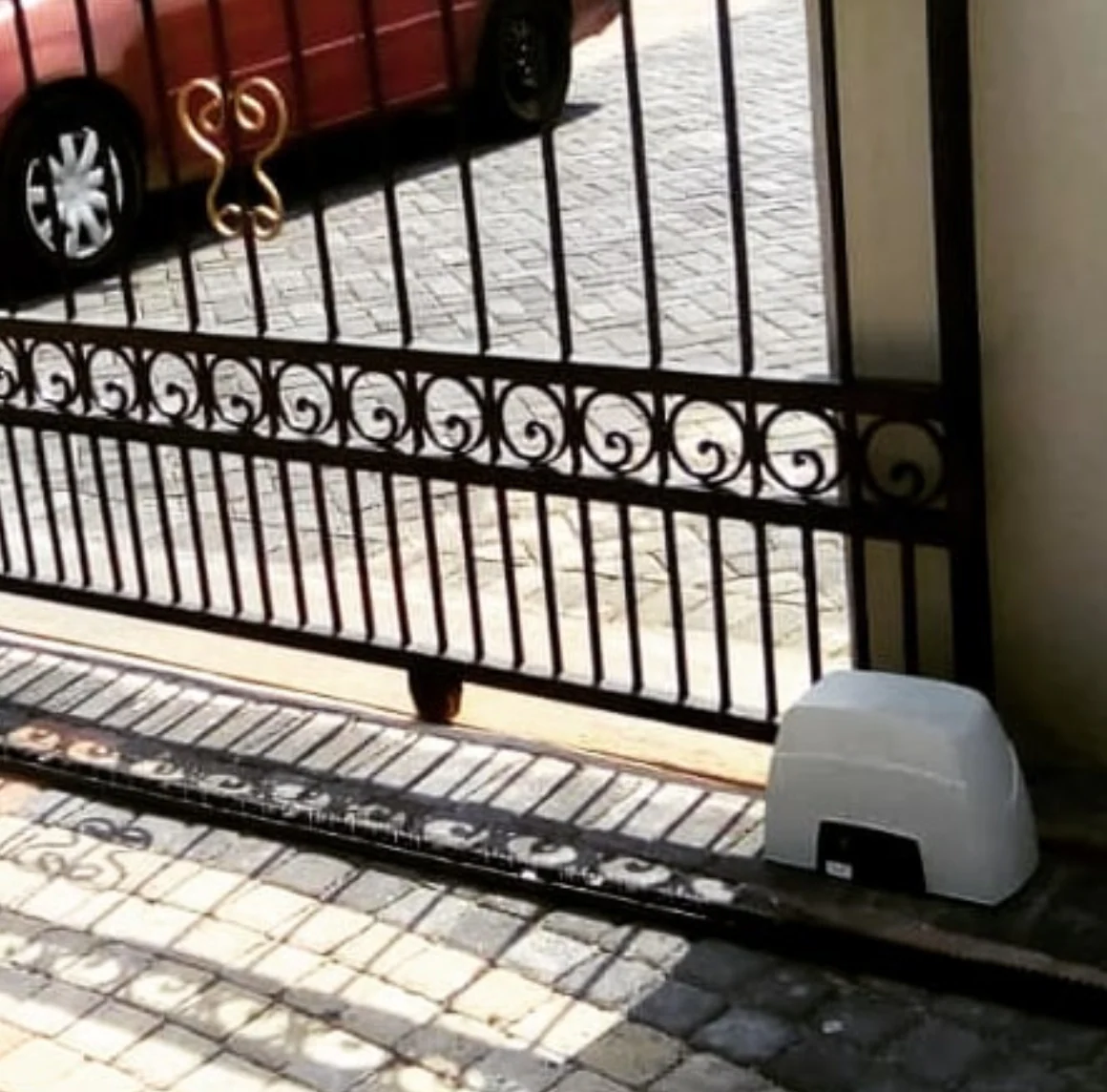

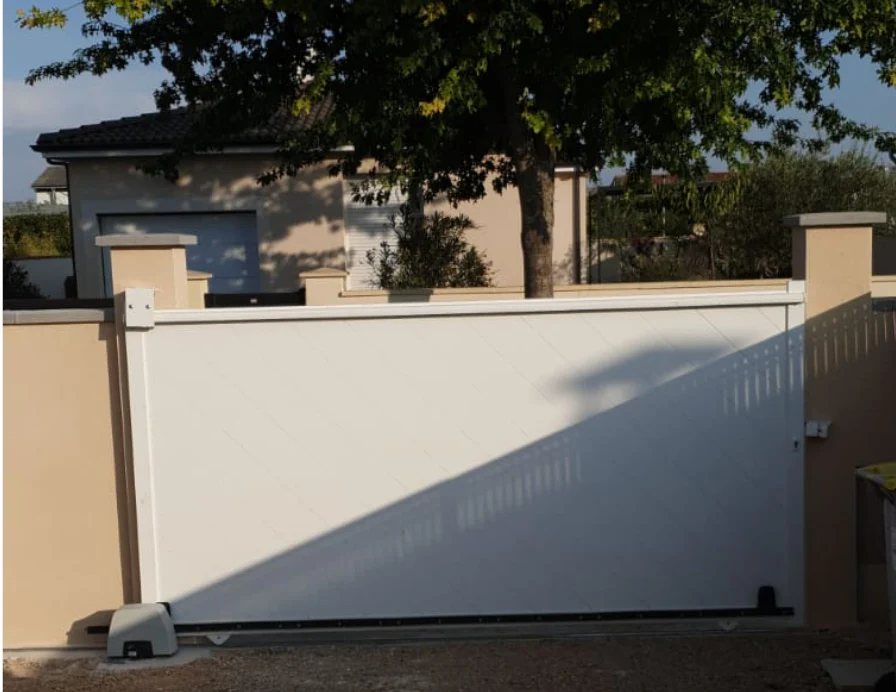

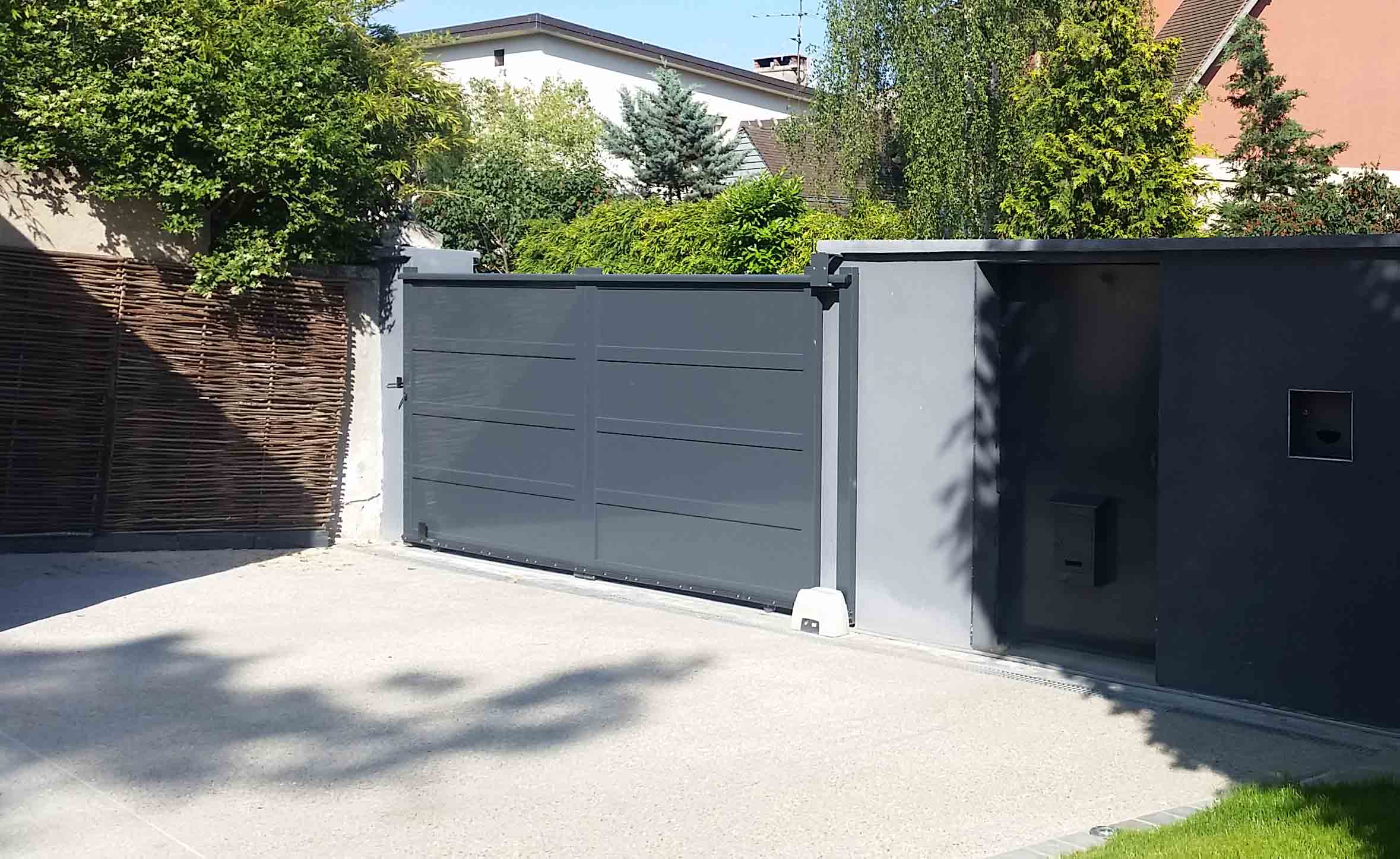

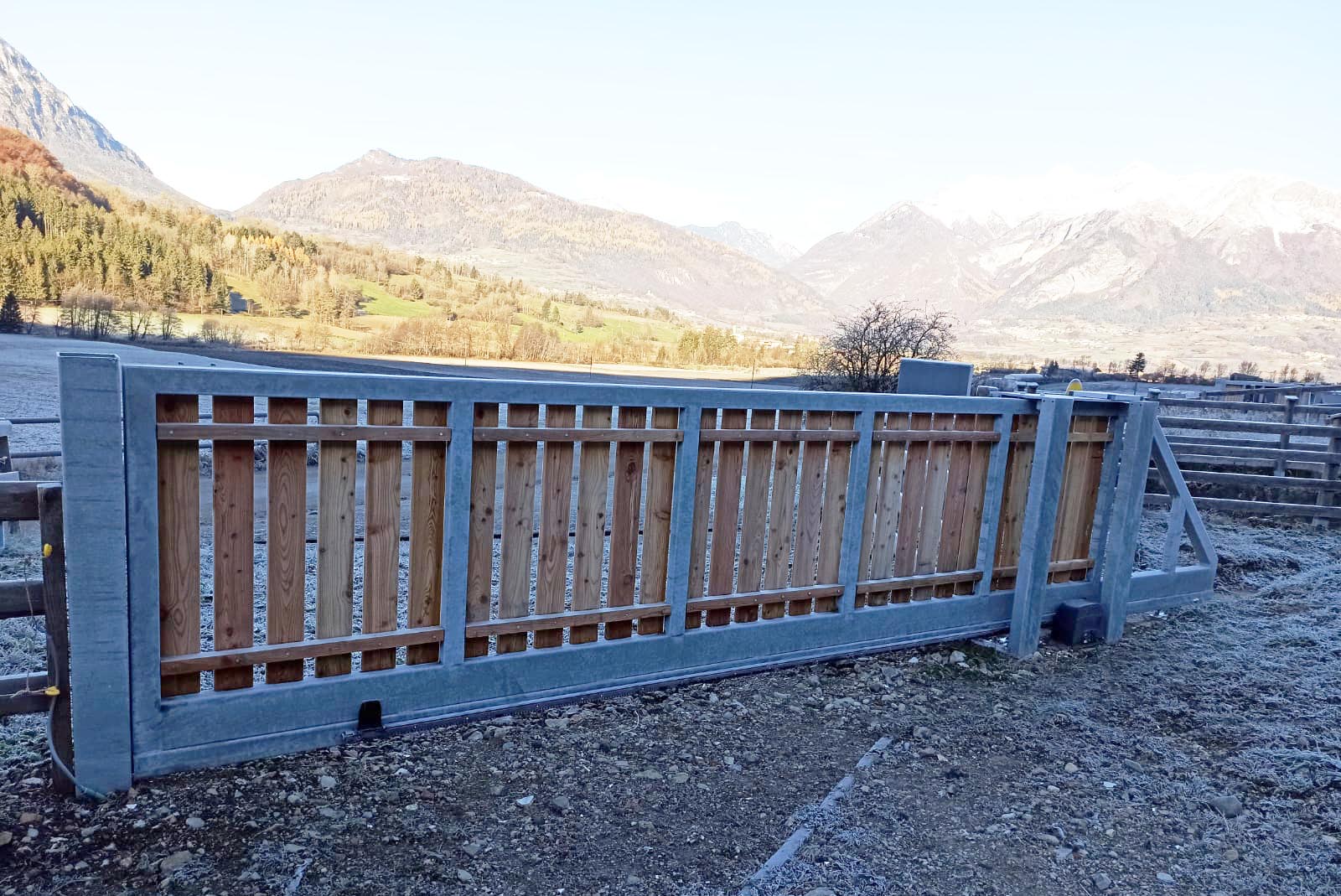

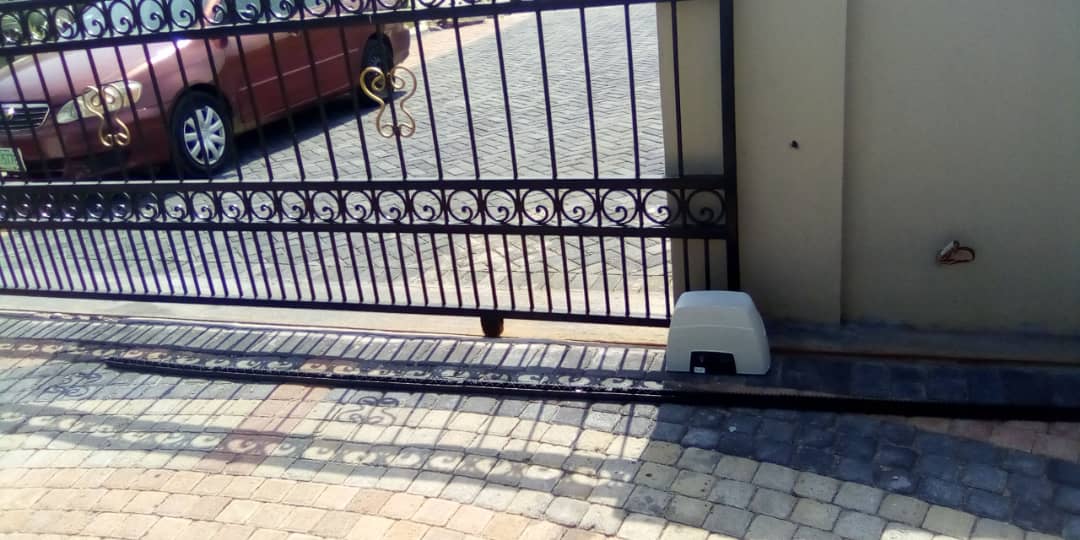

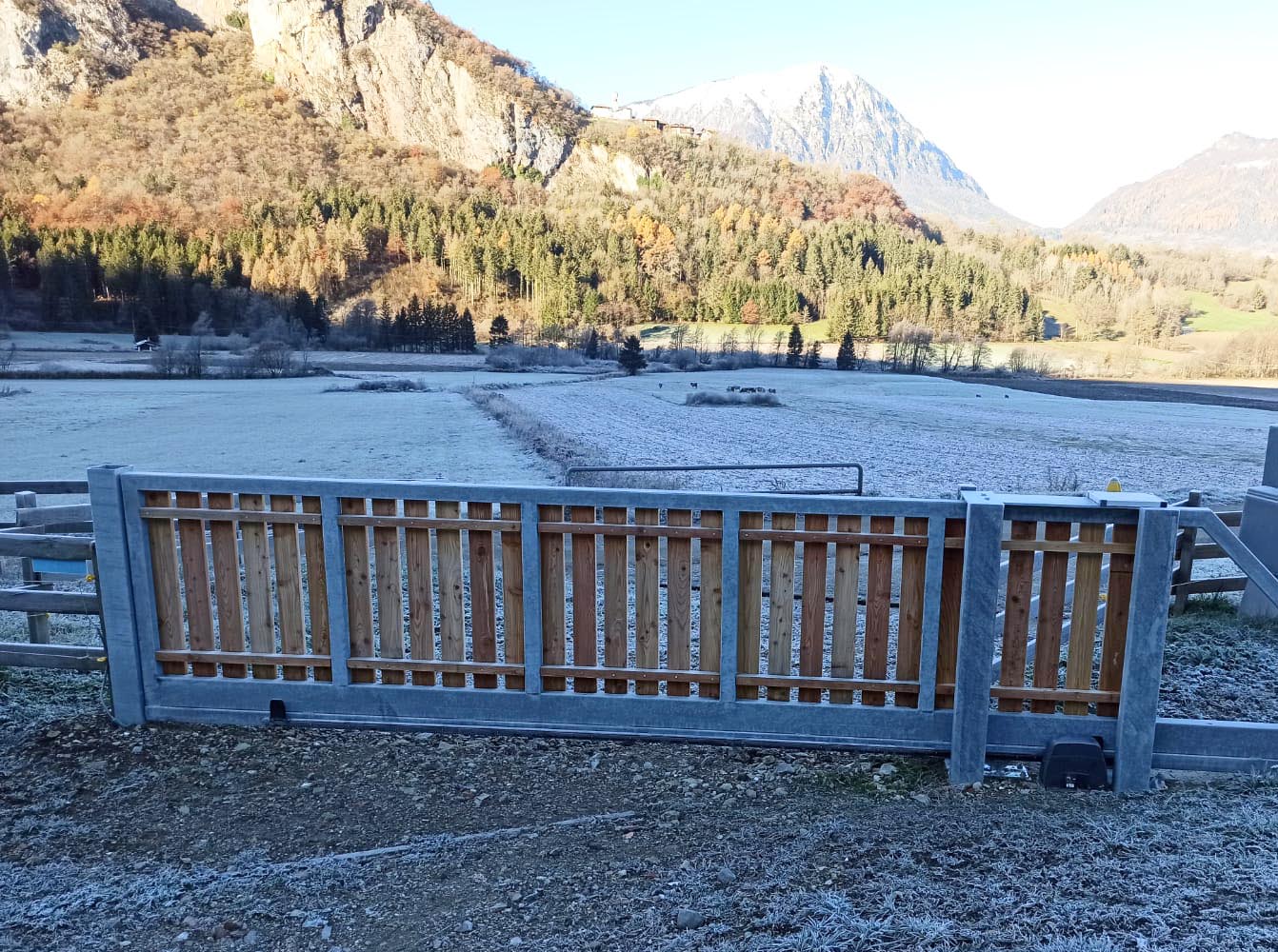

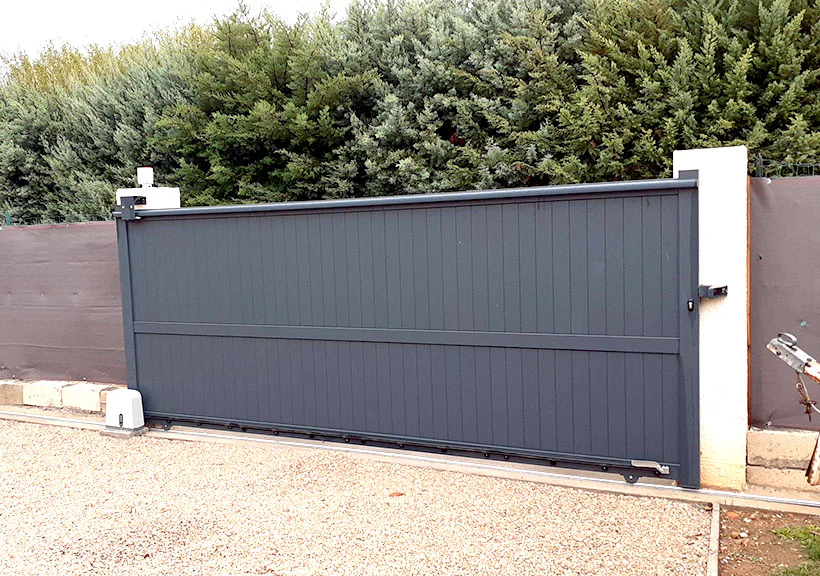

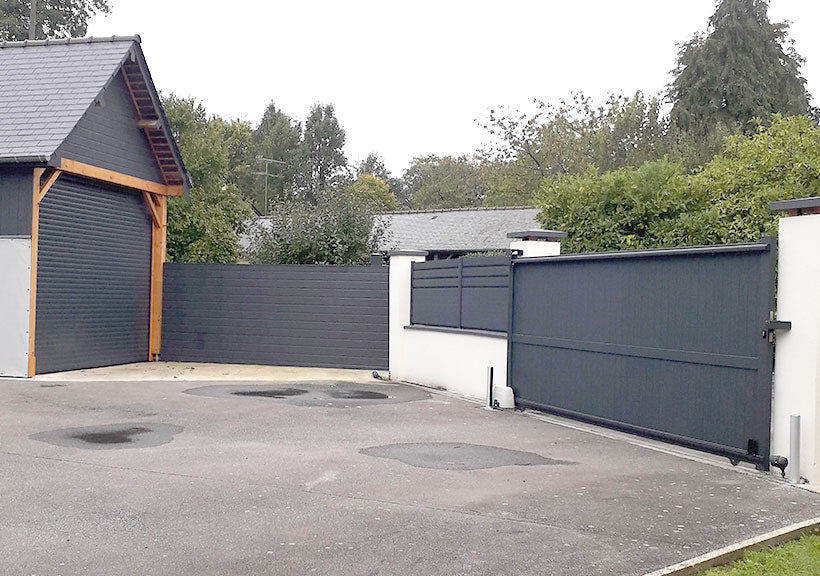

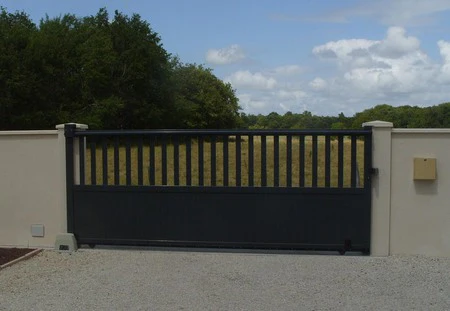

Solar-powered sliding gate opener Ideal for small light-duty residential gates up to 400kg

4m racks are included, an additional rack can be added as an optional accessory in case of a gate longer than 4m.

Ensures long-lasting performances in all weather conditions.

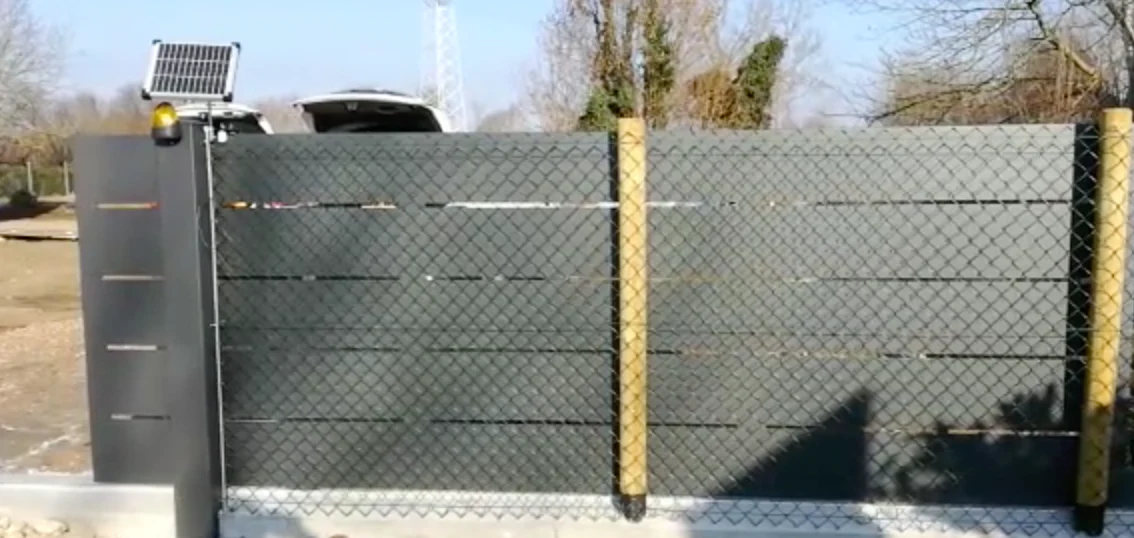

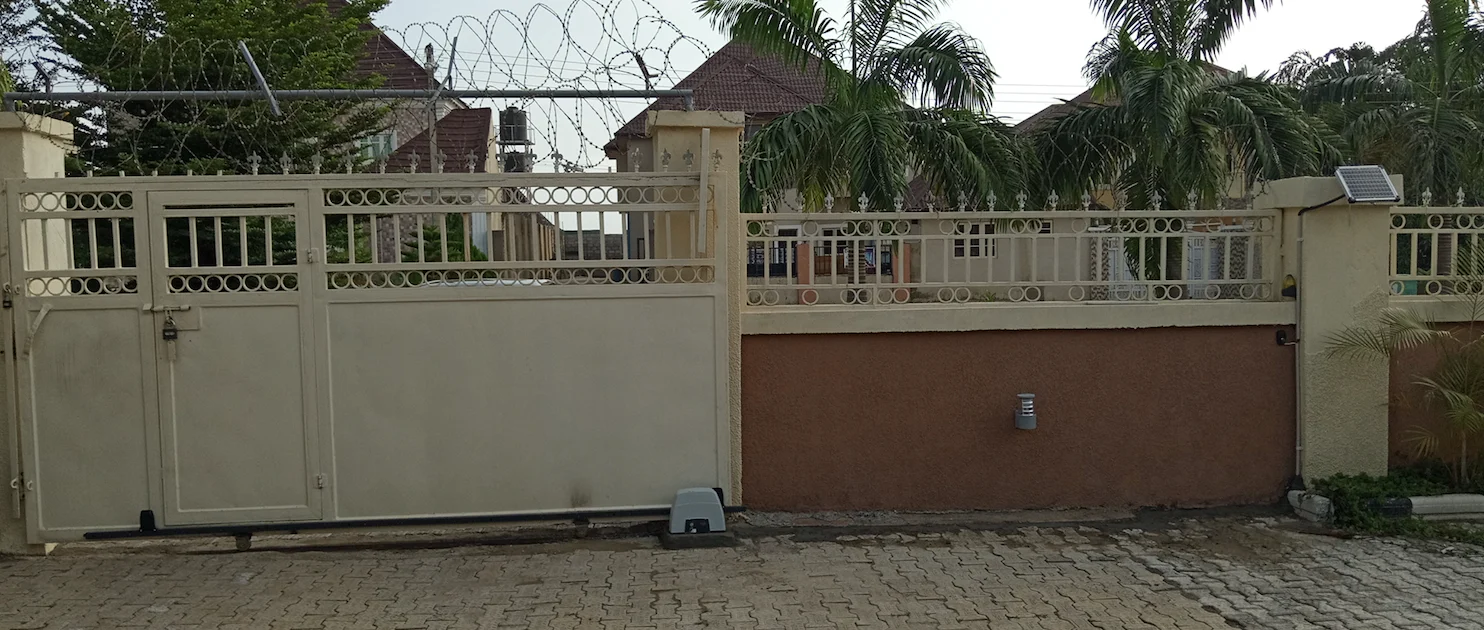

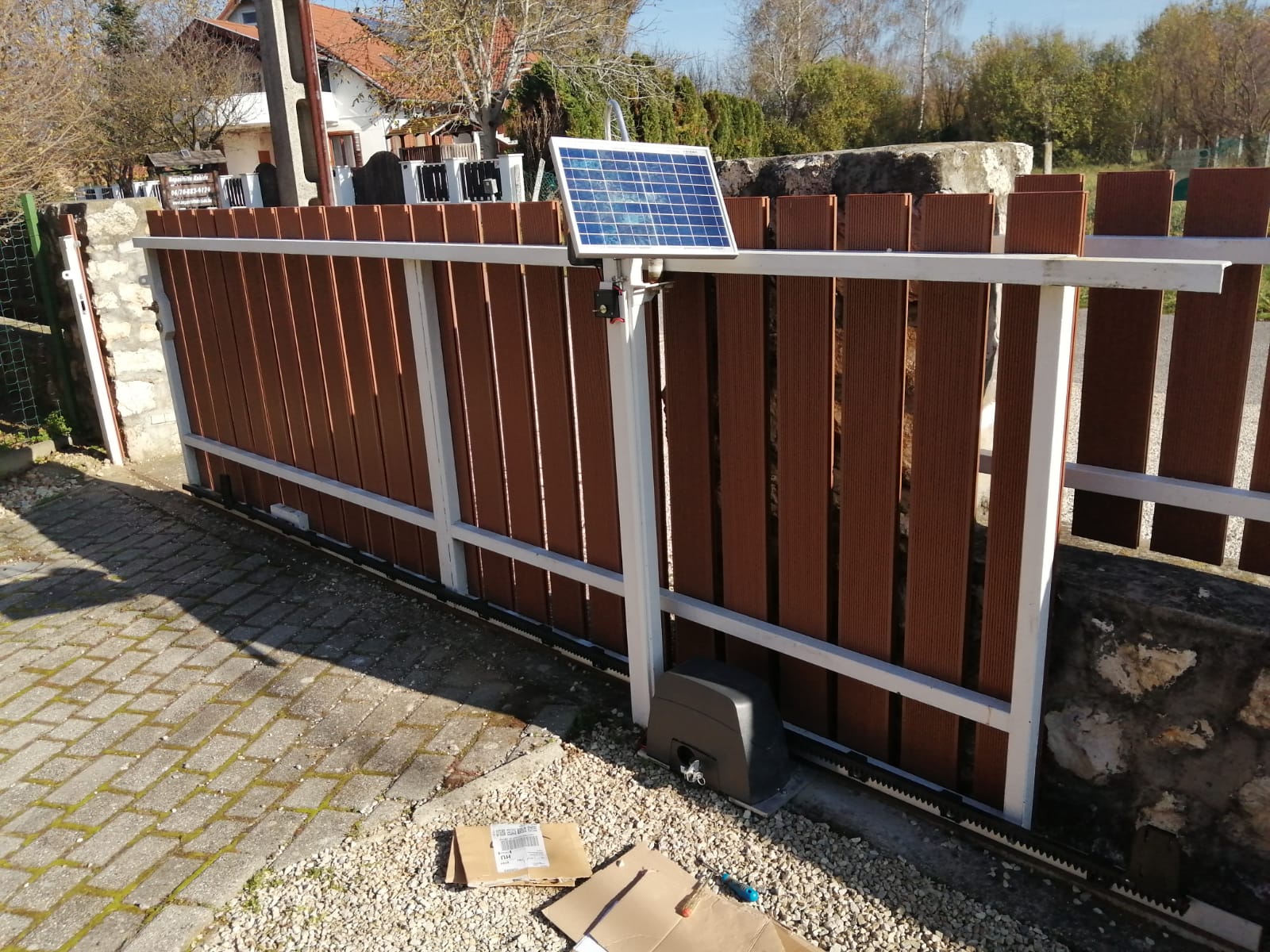

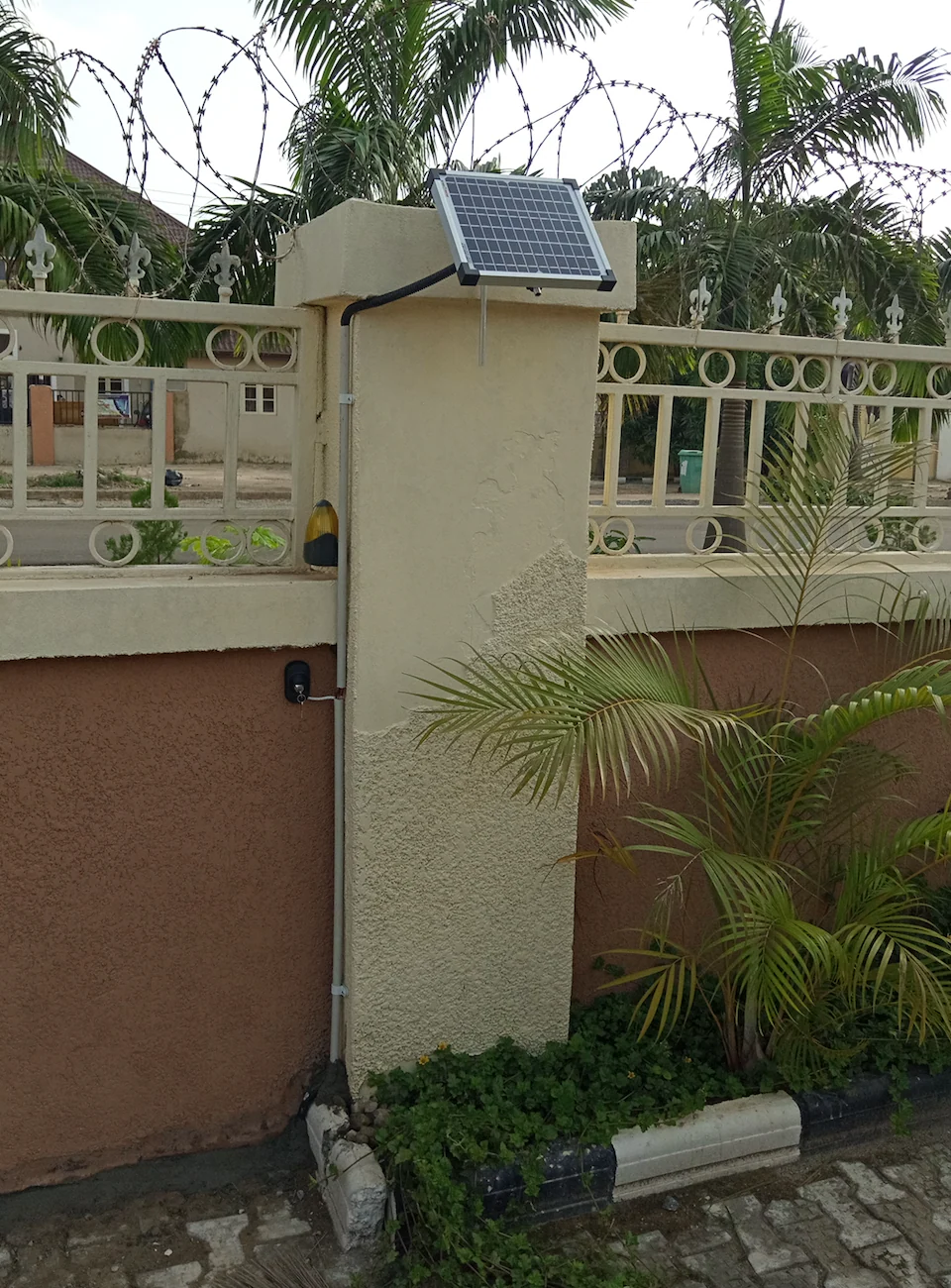

 Operate your gate powered by a photovoltaic solar panel for 100% autonomous use

• Ideal for residential gates up to 400kg weight
• The perfect solar-powered gate opener. All are included to operate your gate with 100% energy independence.
• The ideal gate operator where AC power is unavailable

Highly reliable as featured with Ducati's low consumption: with only 7mA (0,007A) stand-by consumption ensures long lasting performances in all weather conditions. Ideal for residential use. Up to 50 cycles daily guaranteed. No additional modules require: it's all included: a 12V 7A battery + CMBAT 2.0 solar panel & battery recharge management!

LEARN MORE about reduced consumption technology...

LEARN MORE about our solar-powered openers...

Kit Contents

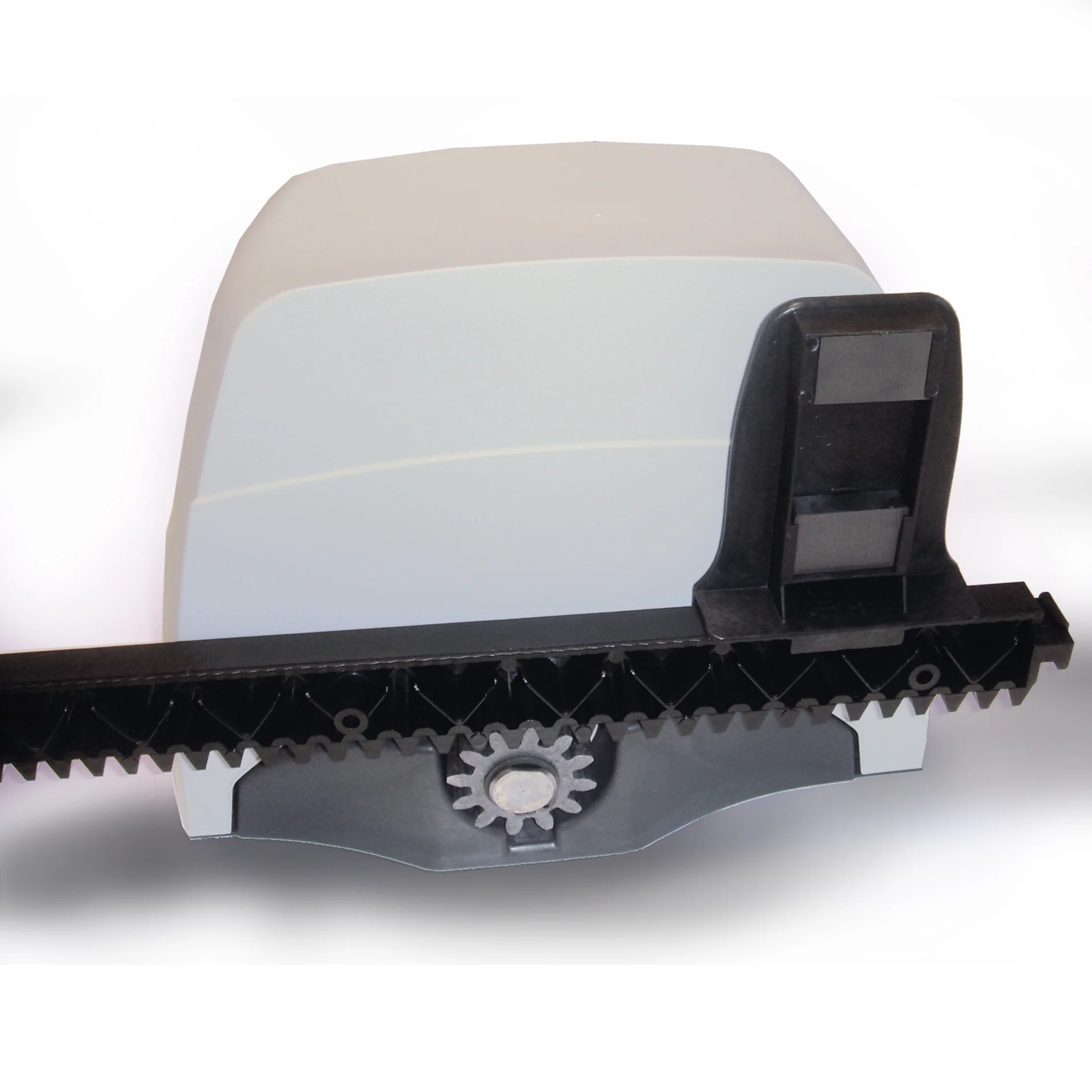

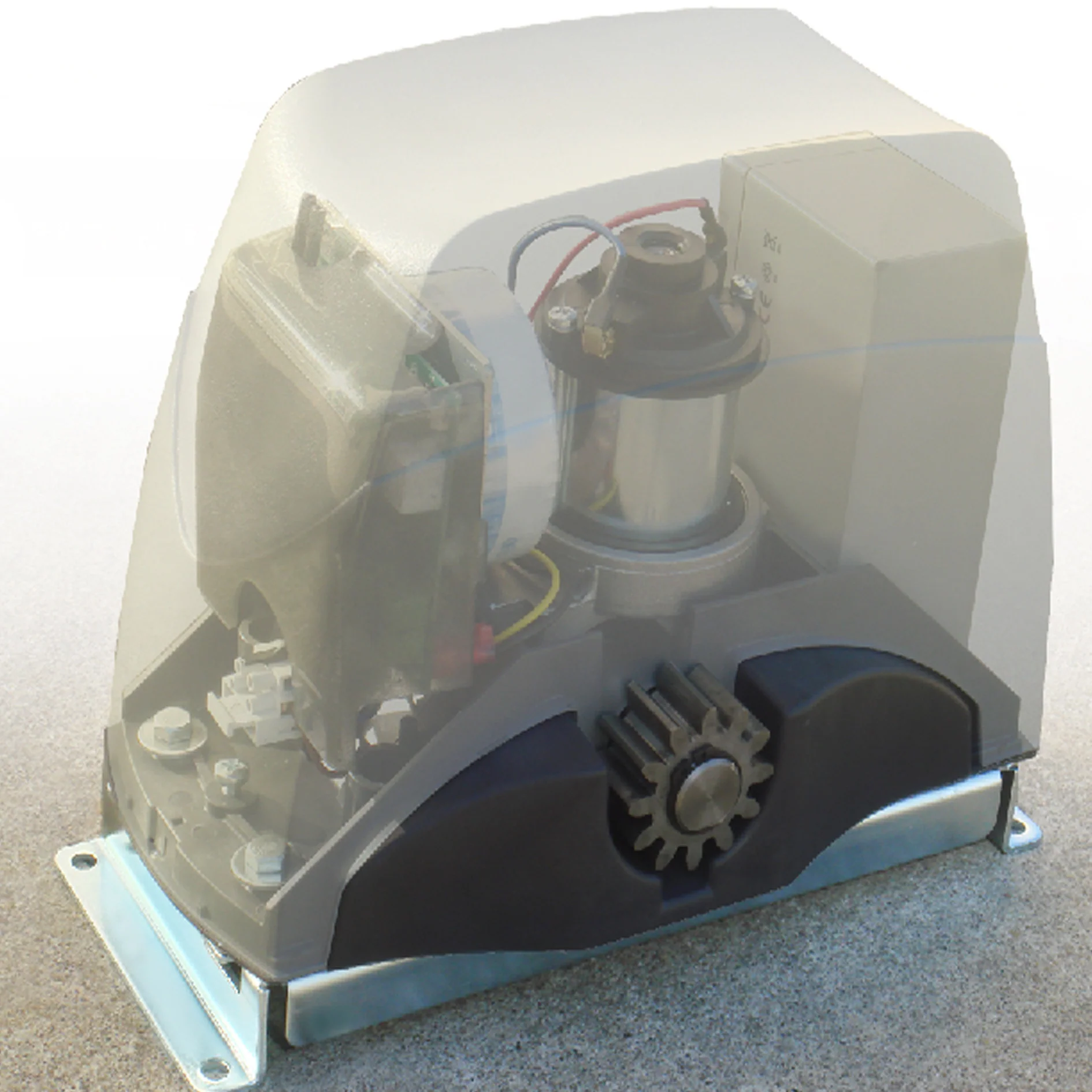

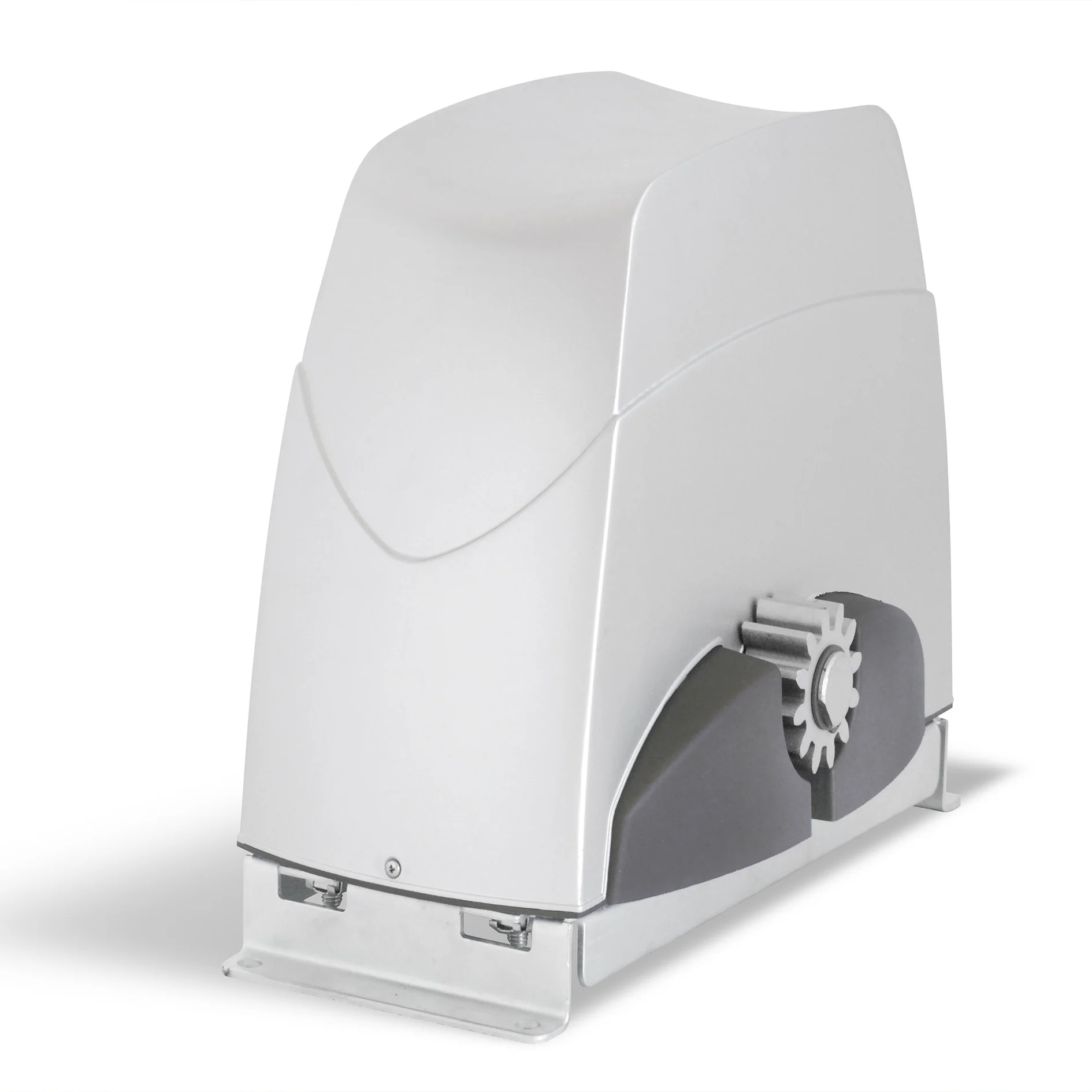

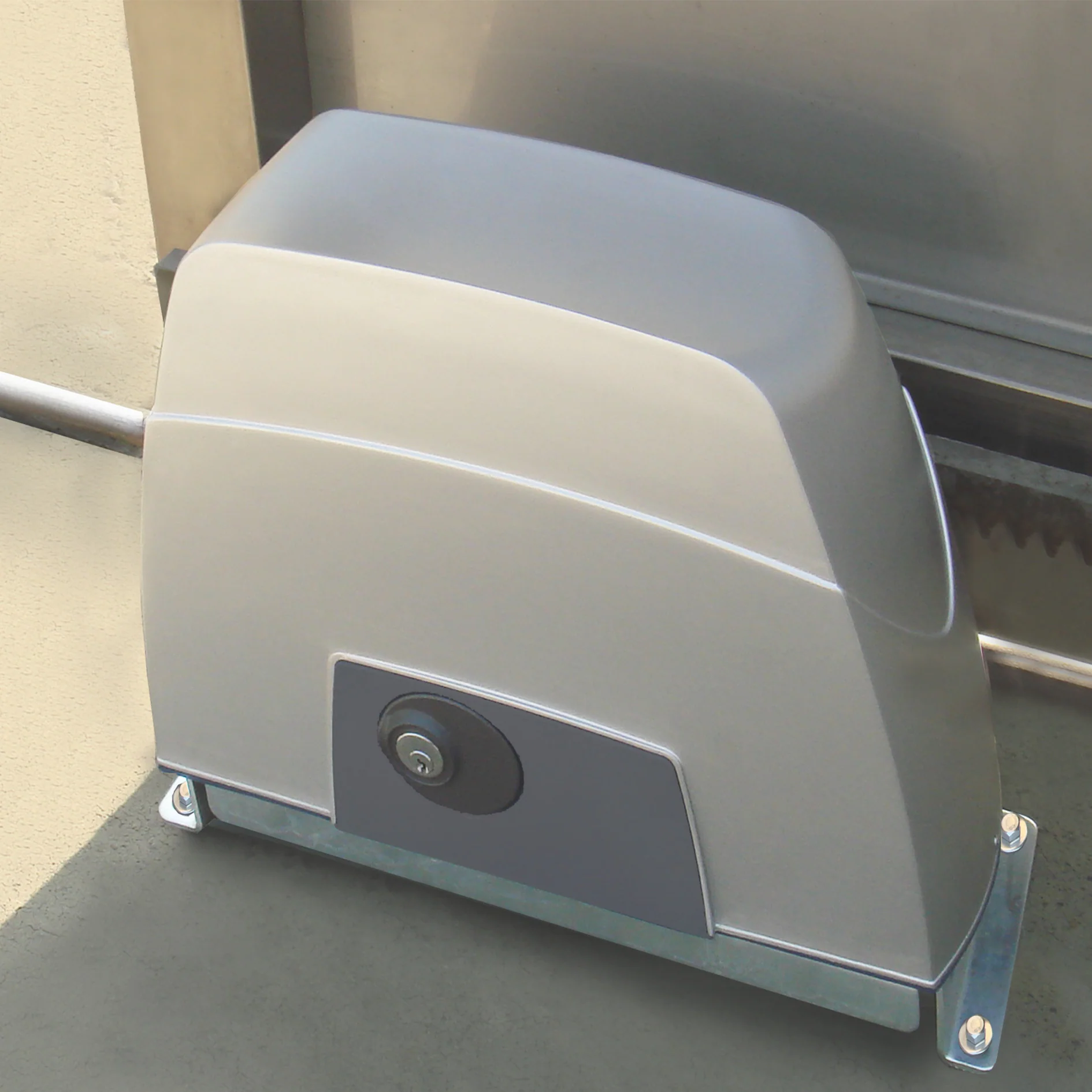

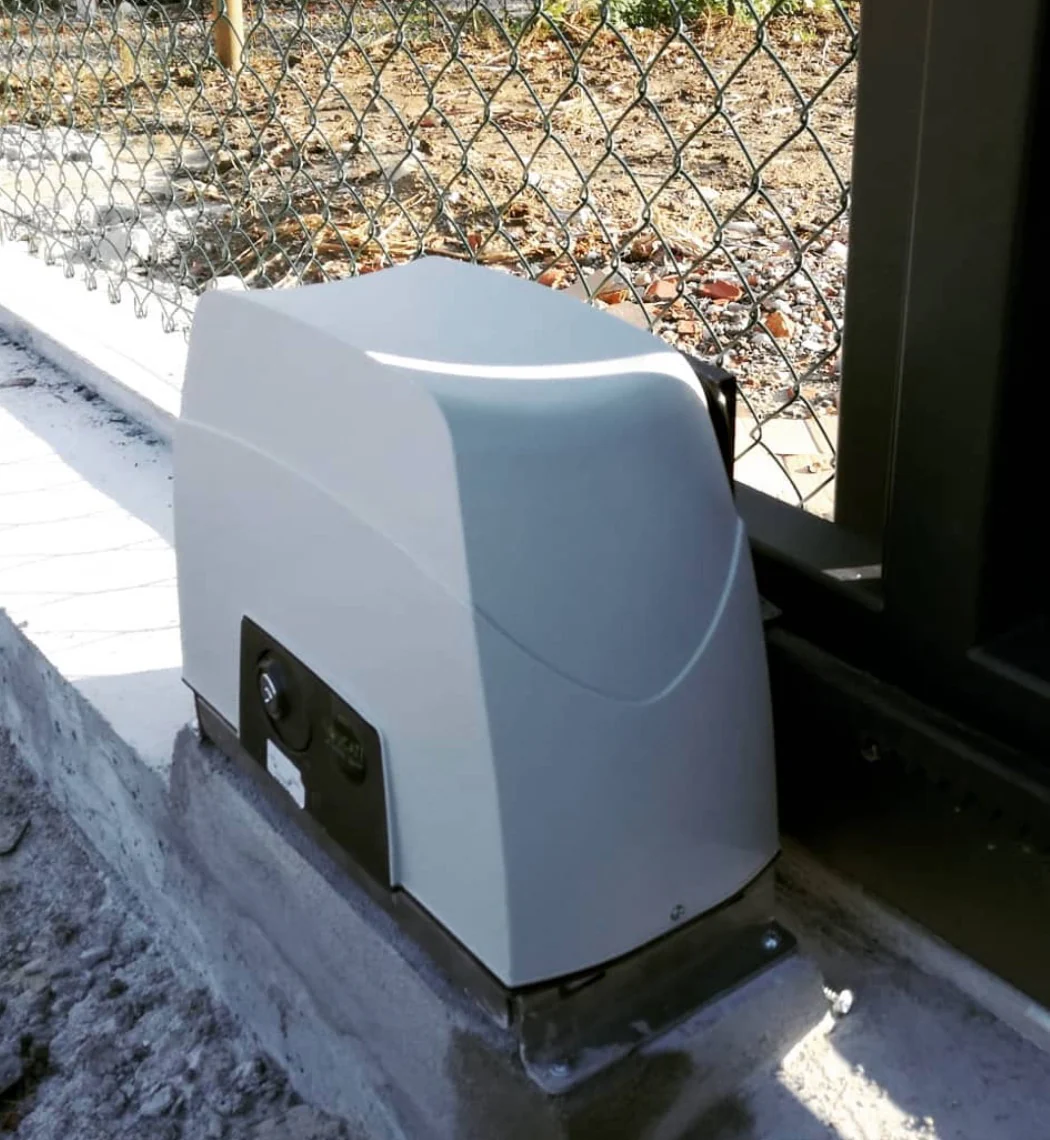

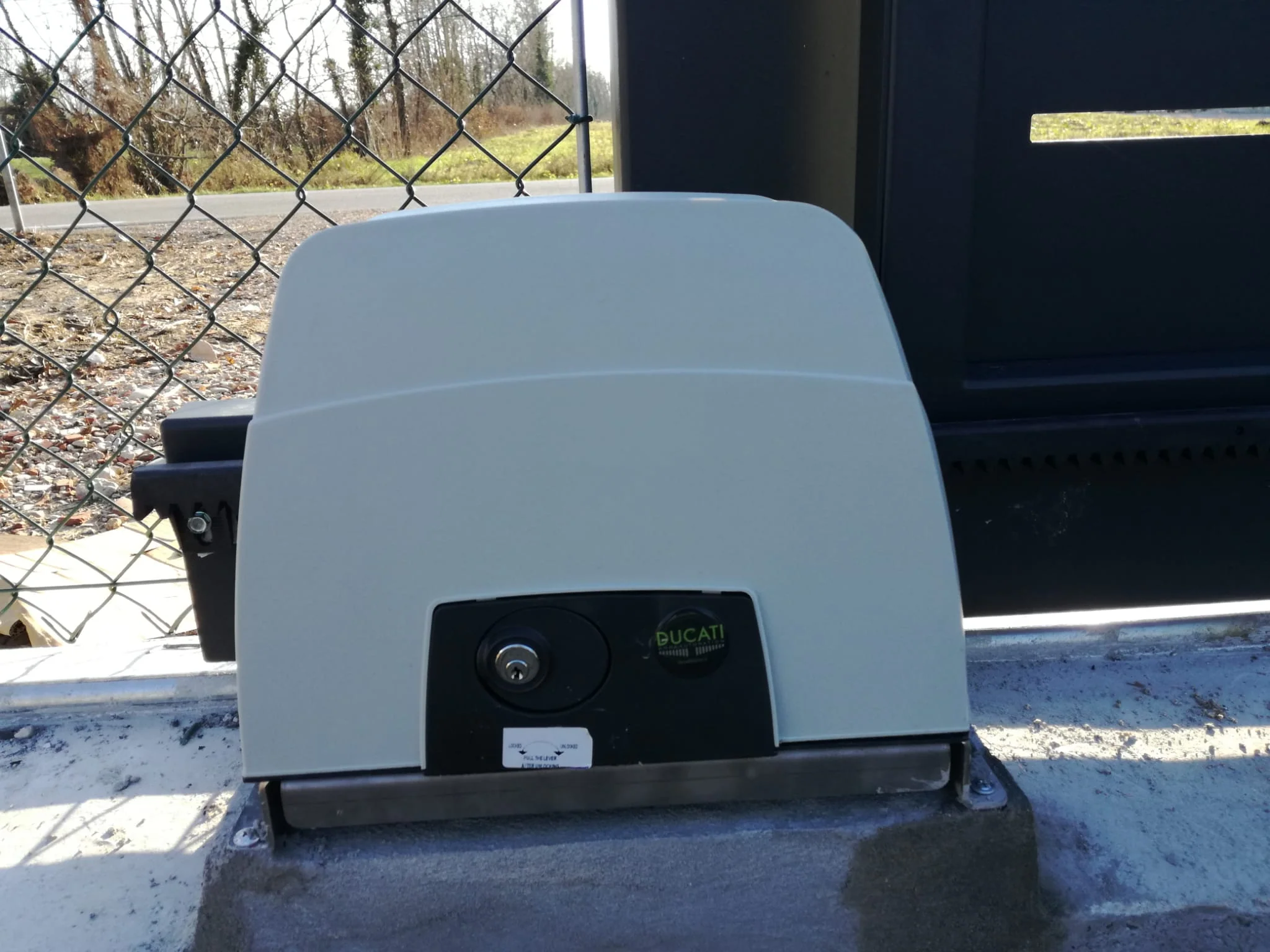

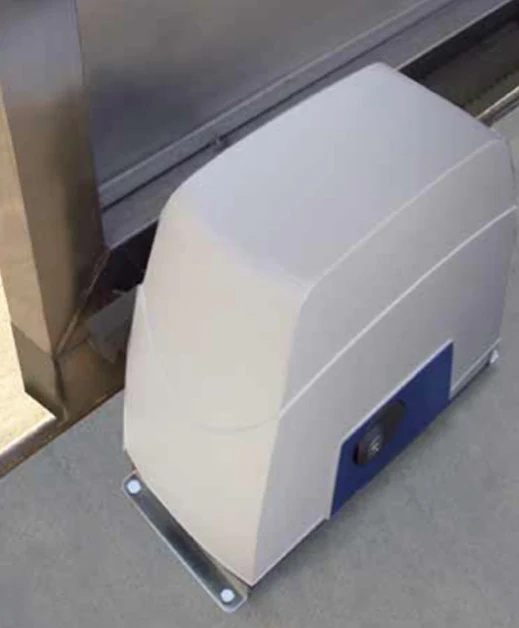

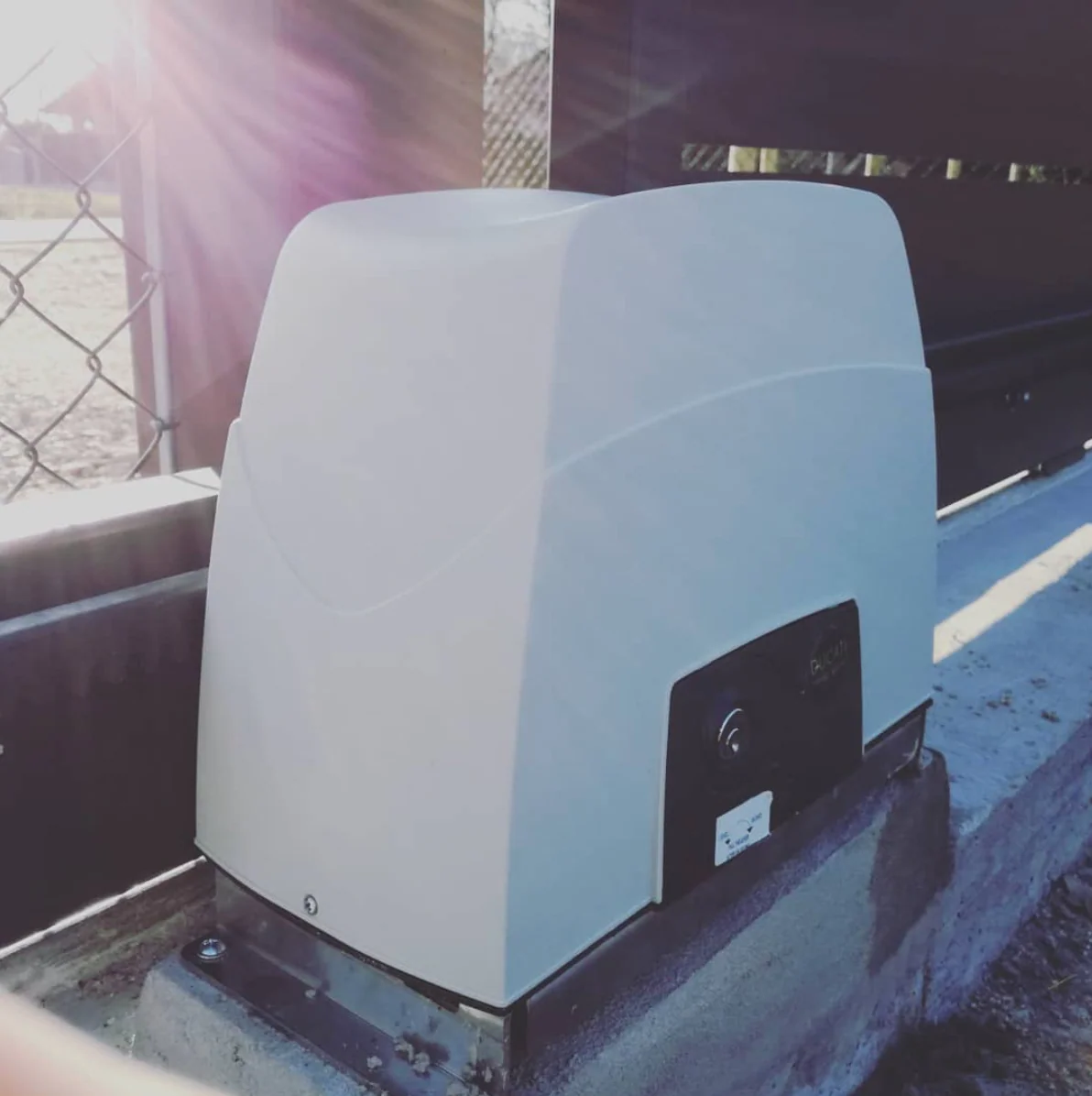

• 1x SLIDE443MC 12V DC motor case with electronic board CTH43 featuring Soft Stop, onboard radio receiver ( rolling coded)
• 2 x Magnetic end limits
• 1 x CMBAT 2.0 battery charger & solar panel management board

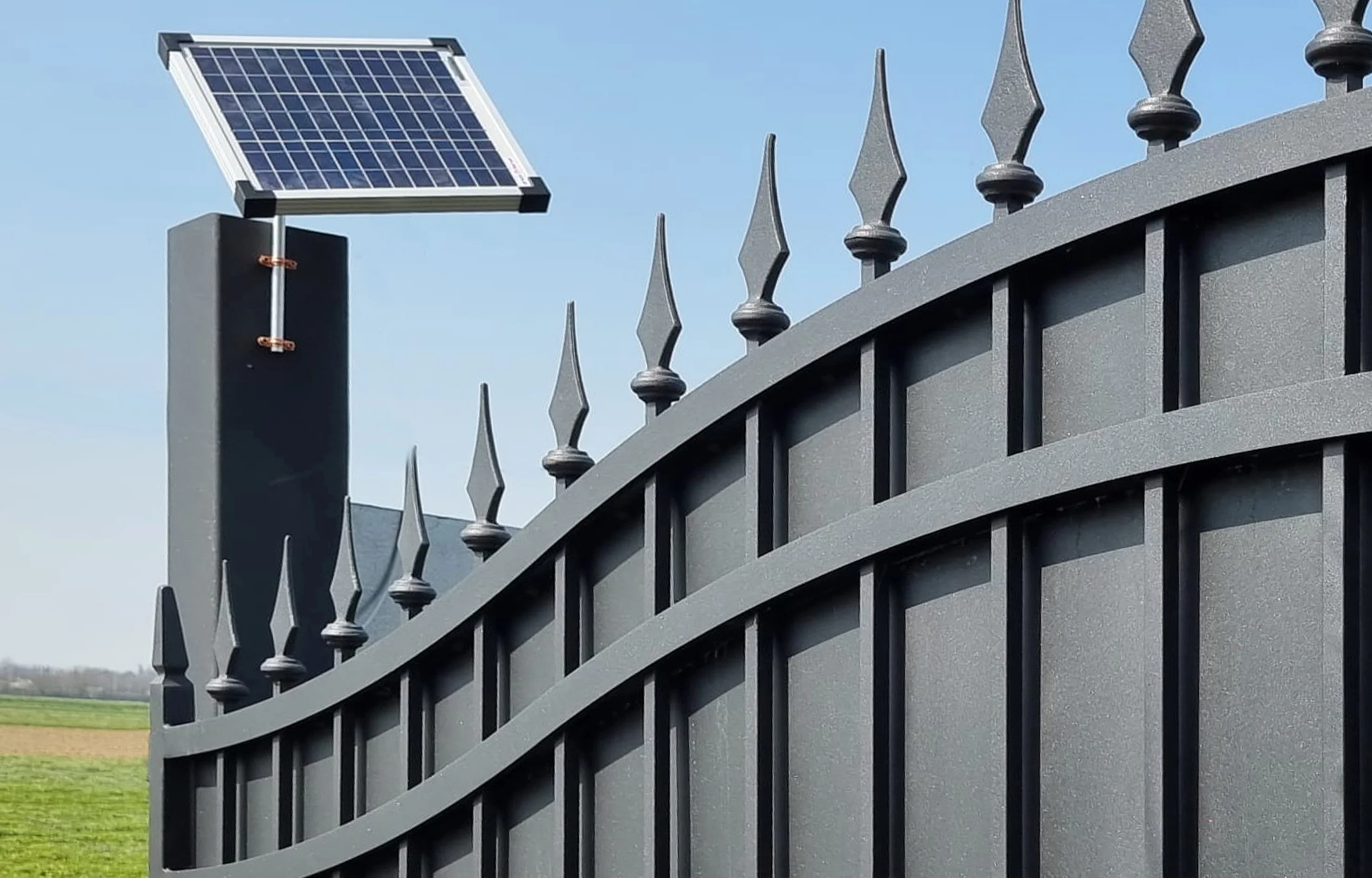

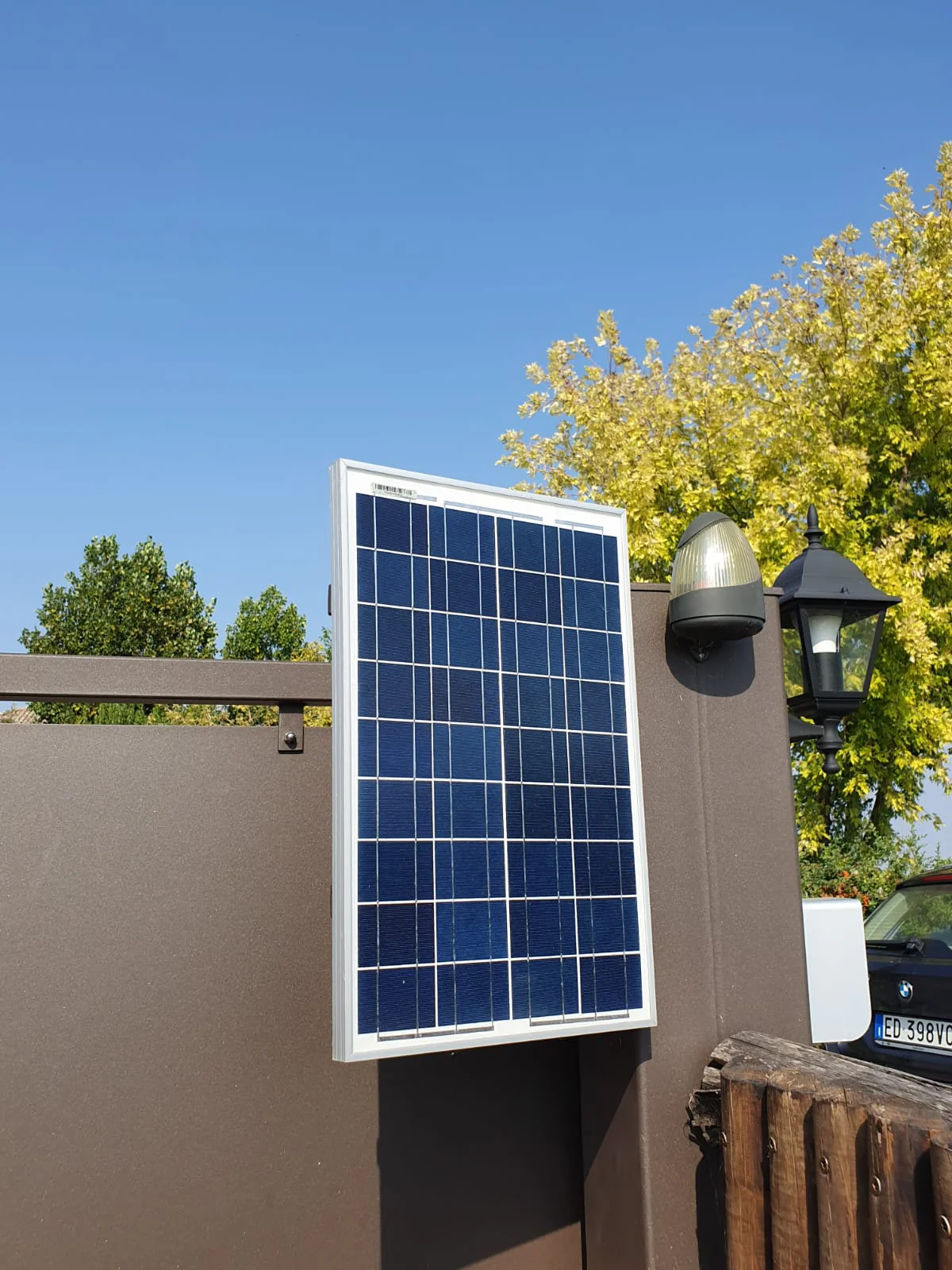

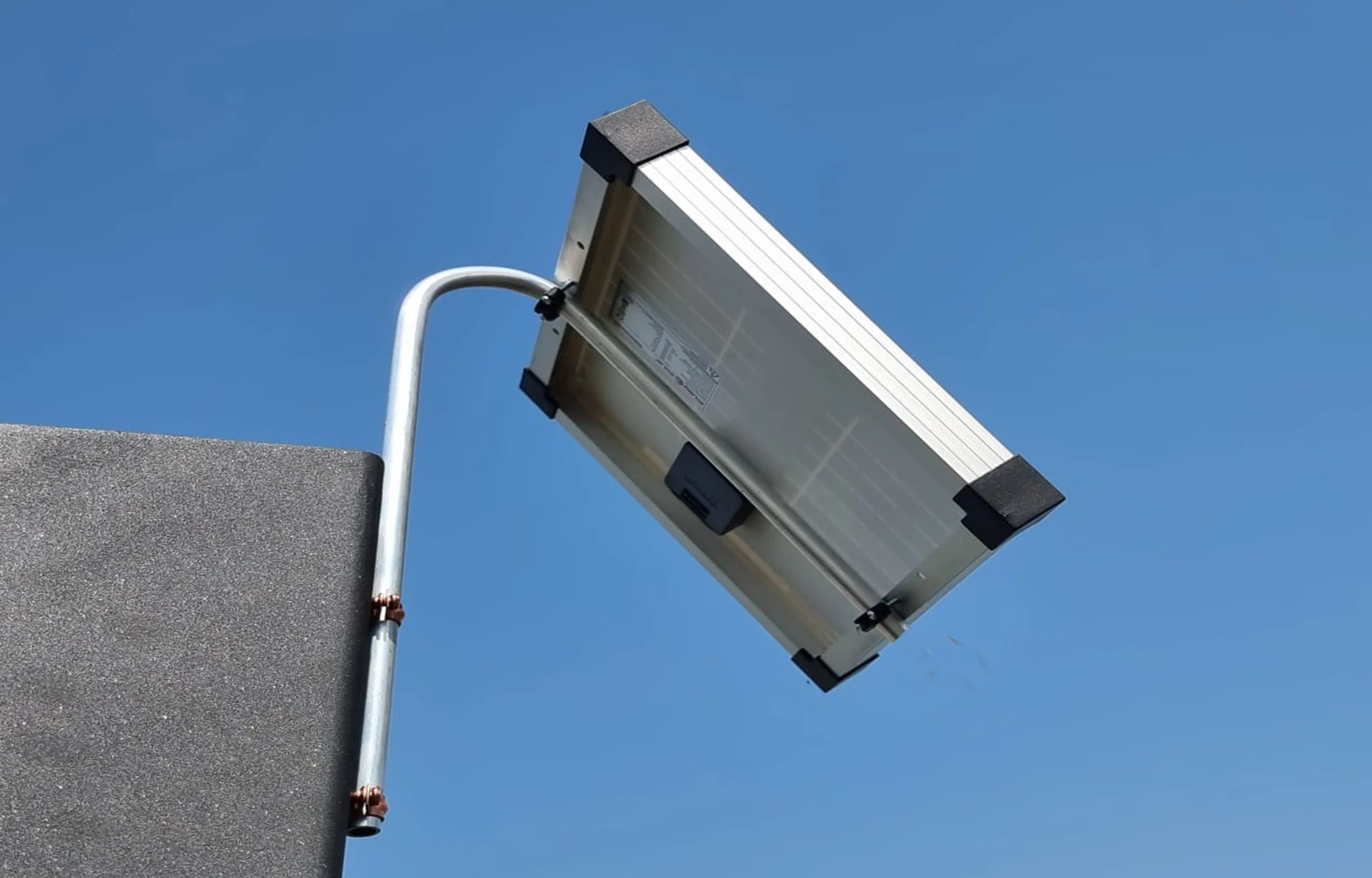

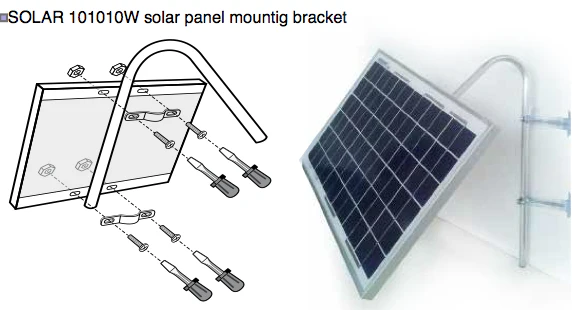

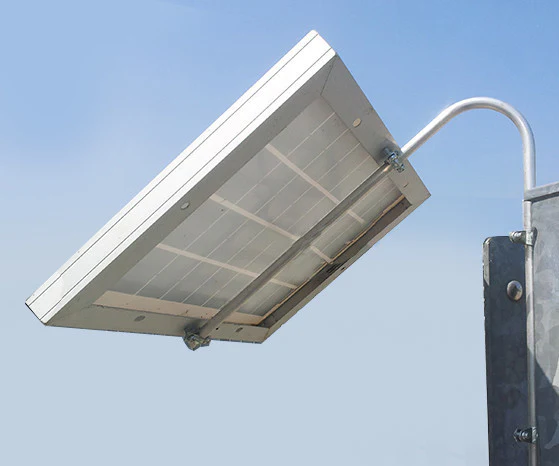

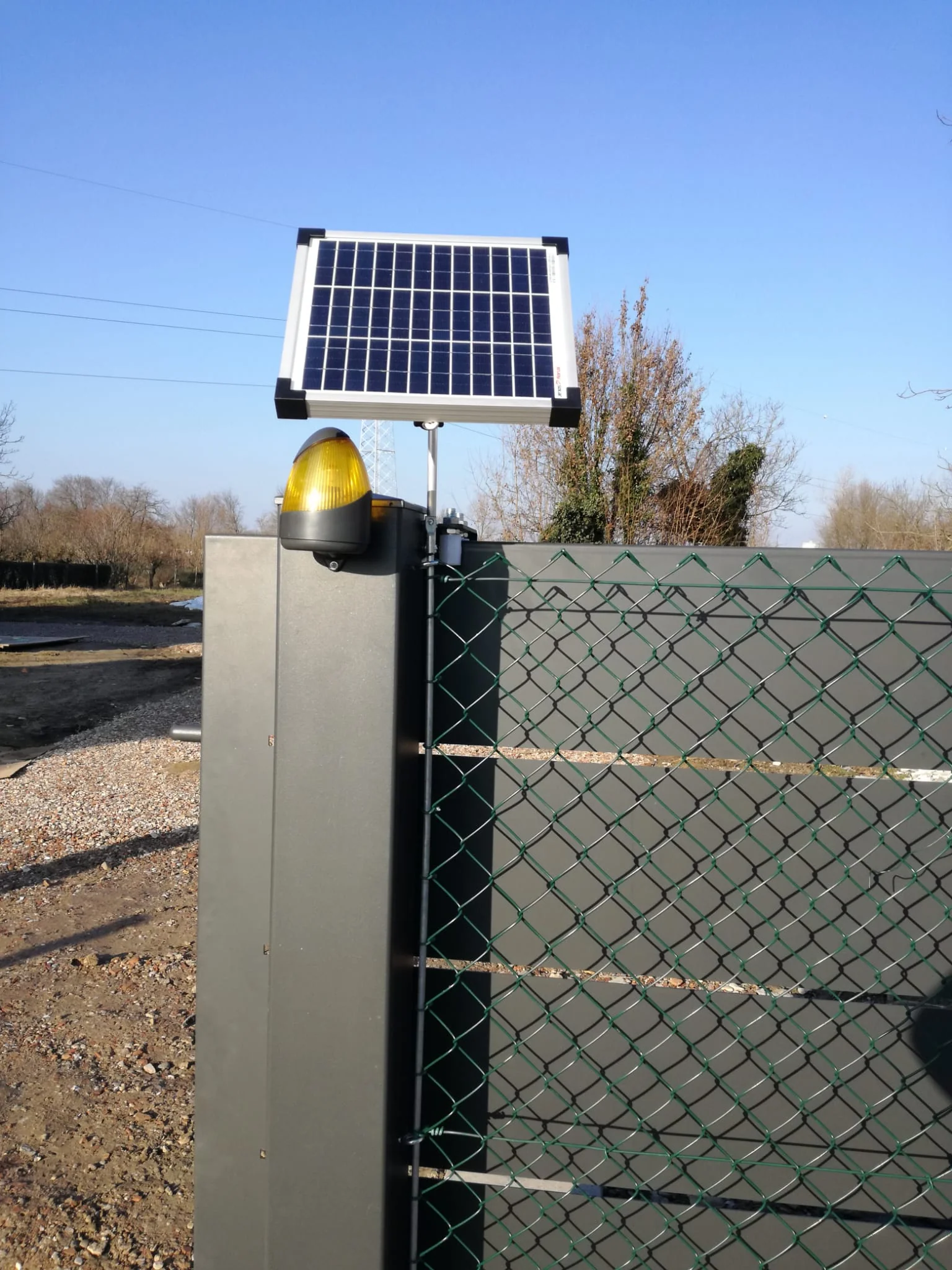

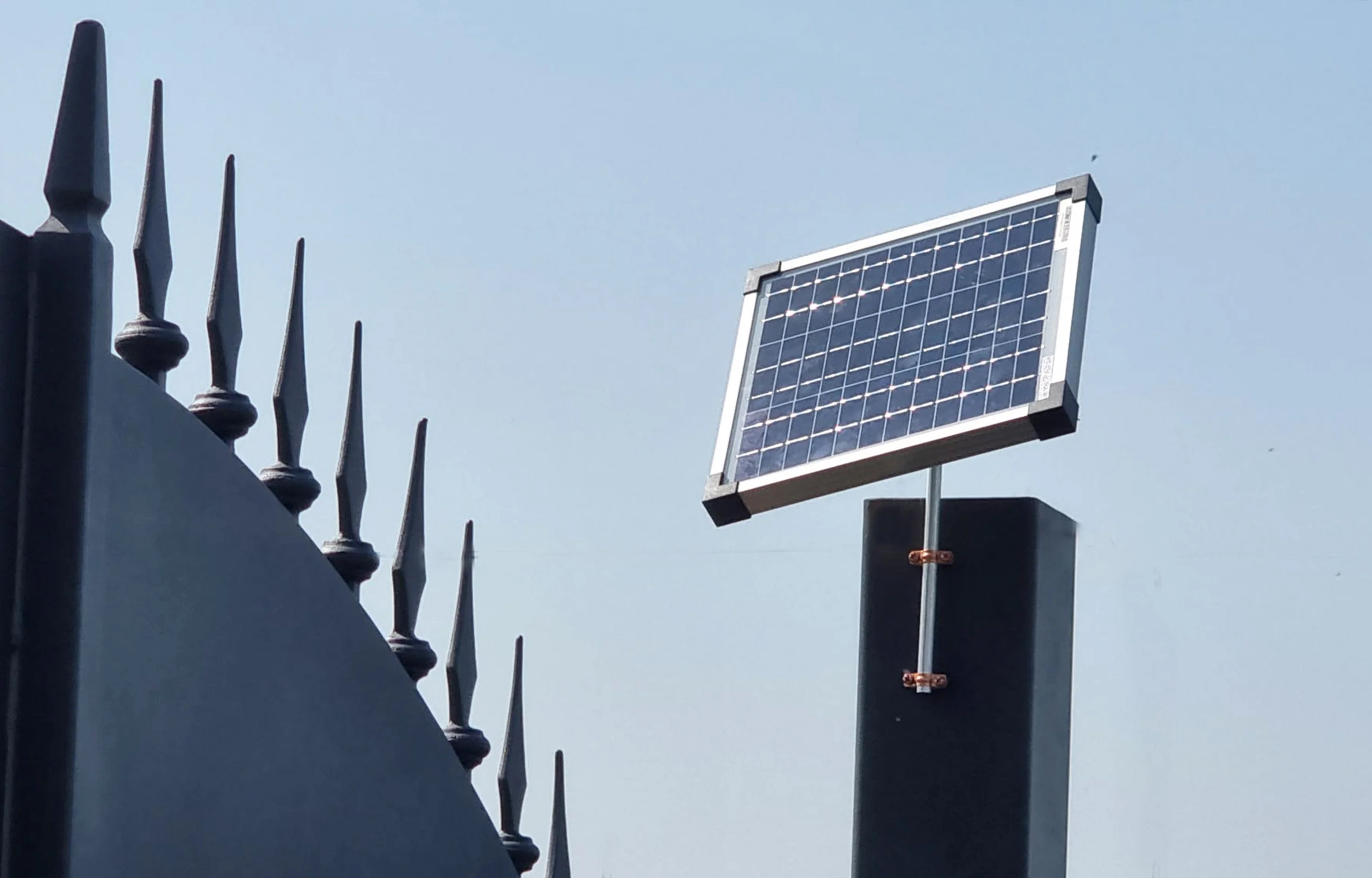

• 1x SOLAR1012 photovoltaic solar panel 10W 12V with fixing bracket
• 1 x 12V 7A battery
• 4m x 8622 Hostaform rack ( 8 x 50cm)
• 1 pair of keys for manual unlocking
• 1 x  key switch

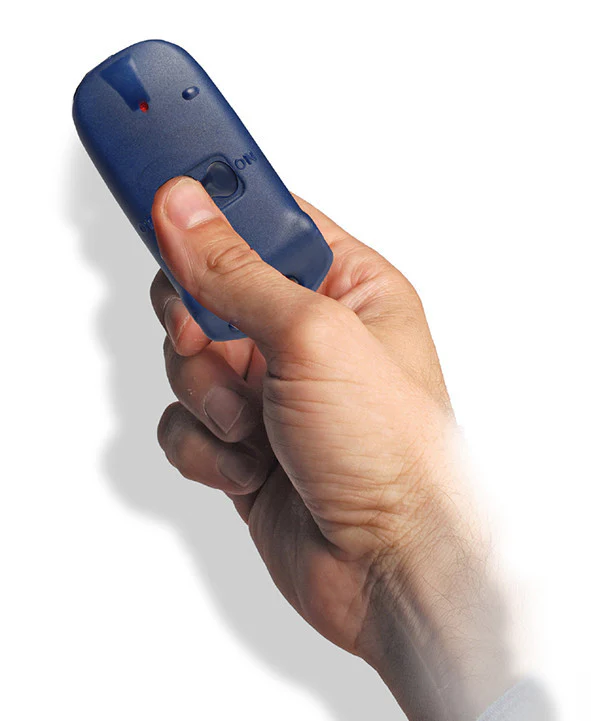

• 2 x  x DUCATI rolling coded remote controls

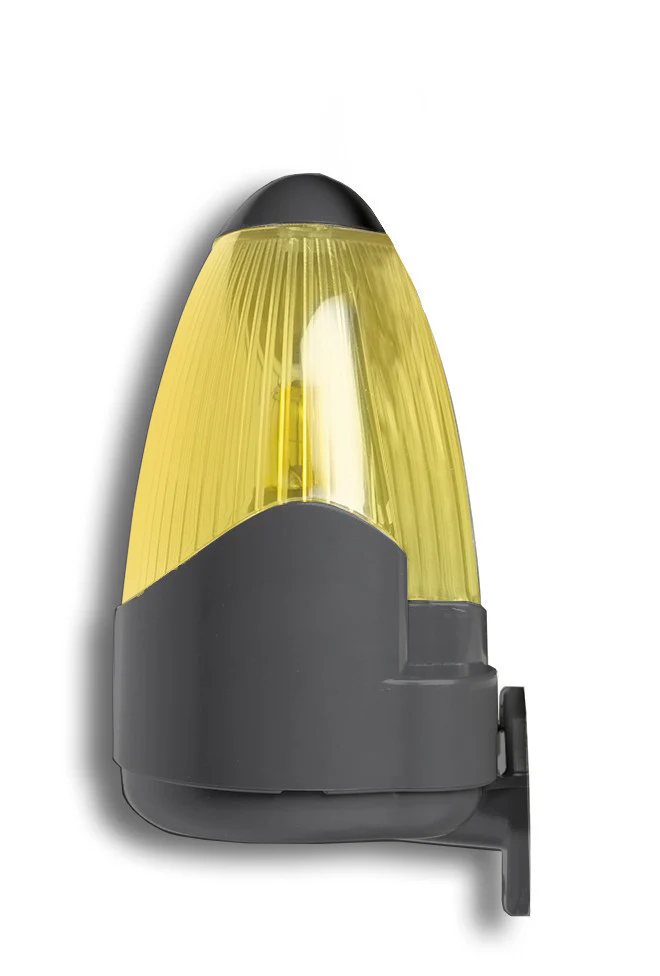

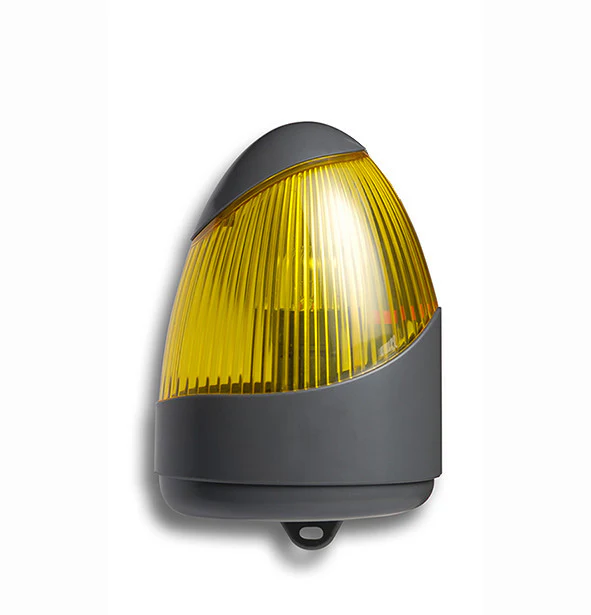

• 1 x  blinker

Features

100% autonomous use powered by a 7A battery with solar panel recharge

Does not need any wiring to the mains AC power supply, integrated battery housing

Warning: Although the system is totally autonomous and does not require any connection to the AC mains, it is also possible to connect the mains AC power supply for an emergency or to recharge the battery from the mains in case of bad weather conditions. To be able to power from the AC mains, the specific toroidal transformer must be purchased separately Item: TRASFO230-105VA 0-12-24 UE

Integrated battery storage compartment: can fit any 12v battery up to maximal dimension: 9cm x 15cm x 6,5cm h

DUCO SAFE technology Safety is ensured by a sensitive amperometric obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while the gate is closing.In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 200

ASR (Automatic Reversal System)

Thanks to the integrated amperometric detection system and direction sensor, the opener is provided with an automatic reversal system in case the gate reaches an obstacle, the opener stops immediately and reverses automatically. The highest safety is ensured.

• Ideal for a safe, quick, and easy installation: the system is electrocution risk-free.
• Low consumption technology: only 0,007A stand-by consumption! reduces waste of energy, and saves money. Ensure long-lasting autonomous use ad reliability. Up to 40 daily cycles are guaranteed even in not ideal winter weather.
• Integrated solar panel & battery management: the control board is ready to operate autonomously.
• Ideal for a safe, quick, and easy installation: the system works in DC current and is electrocution risk-free.
• 2 working modes: "STEP by STEP" ( push to open & push to close) or Automatic close with adjustable time (you can vary the pause time from 1 to 100 seconds)
• Motor housing  with integrated battery housing compartment: can fit any 12V battery up to maximal dimension: 9cm x 15cm x 6,5cm
• Easy  self-storing  of the remotes controls by pushing one button
• Adjustable motor power/ obstacle detection sensibility. By decreasing the power the gate opener will be more sensible in case of impact on an obstacle. The adjustment is very easy:  just need to rotate the potentiometer related to each motor.
• Pedestrian opening (partial opening of one the gate  to allow  pedestrian crossing only) this feature can be controlled by remote control  or wired command
• Made in Italy - All components are manufactured in the company to warranty high quality and reliability.
• After-sale service and assistance are provided directly by manufacturers without intermediaries in order to provide quick and immediate solutions to any demand.
• The gate is automatically locked in the closed position (irreversible system).

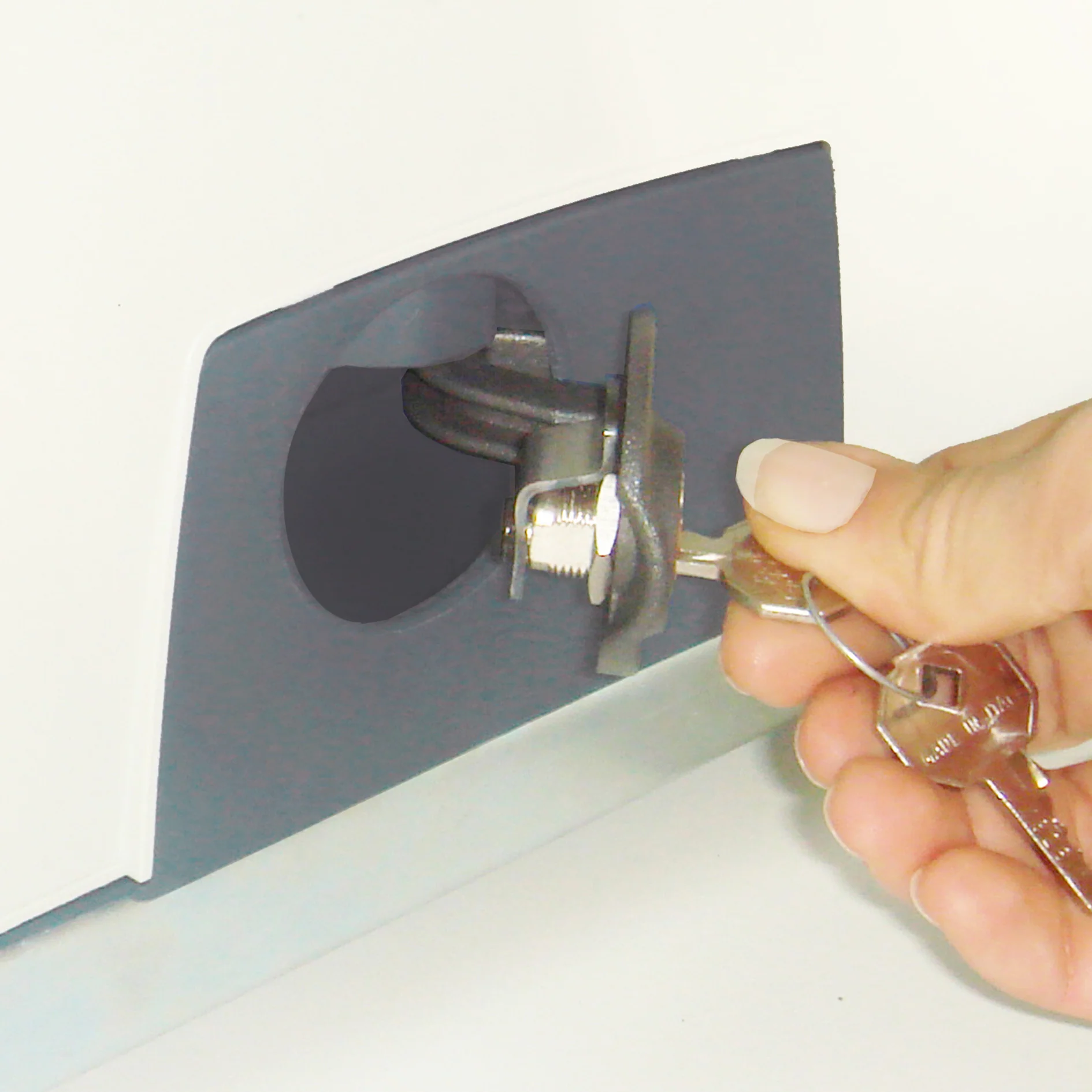

• Manual release system by key
• Safety is ensured by a sensitive amperometric obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells are an optional accessory that can be helpful to prevent scratches to the painting of vehicles left in the vicinity of a moving gate. (EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)
• CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request
• Totally in-house designed software and hardware are focused on reducing energy consumption and with attention to absolute reliability using innovative components of the latest generation as our High-quality radio receiver hybrid
• Ducati chooses to use toroidal transformers only to achieve maximum reliability and safety by power surges and ESD. Our Standard 230V-50Hz transformer is also available in 110V/60Hz version.

CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates are available on request.

Technical data

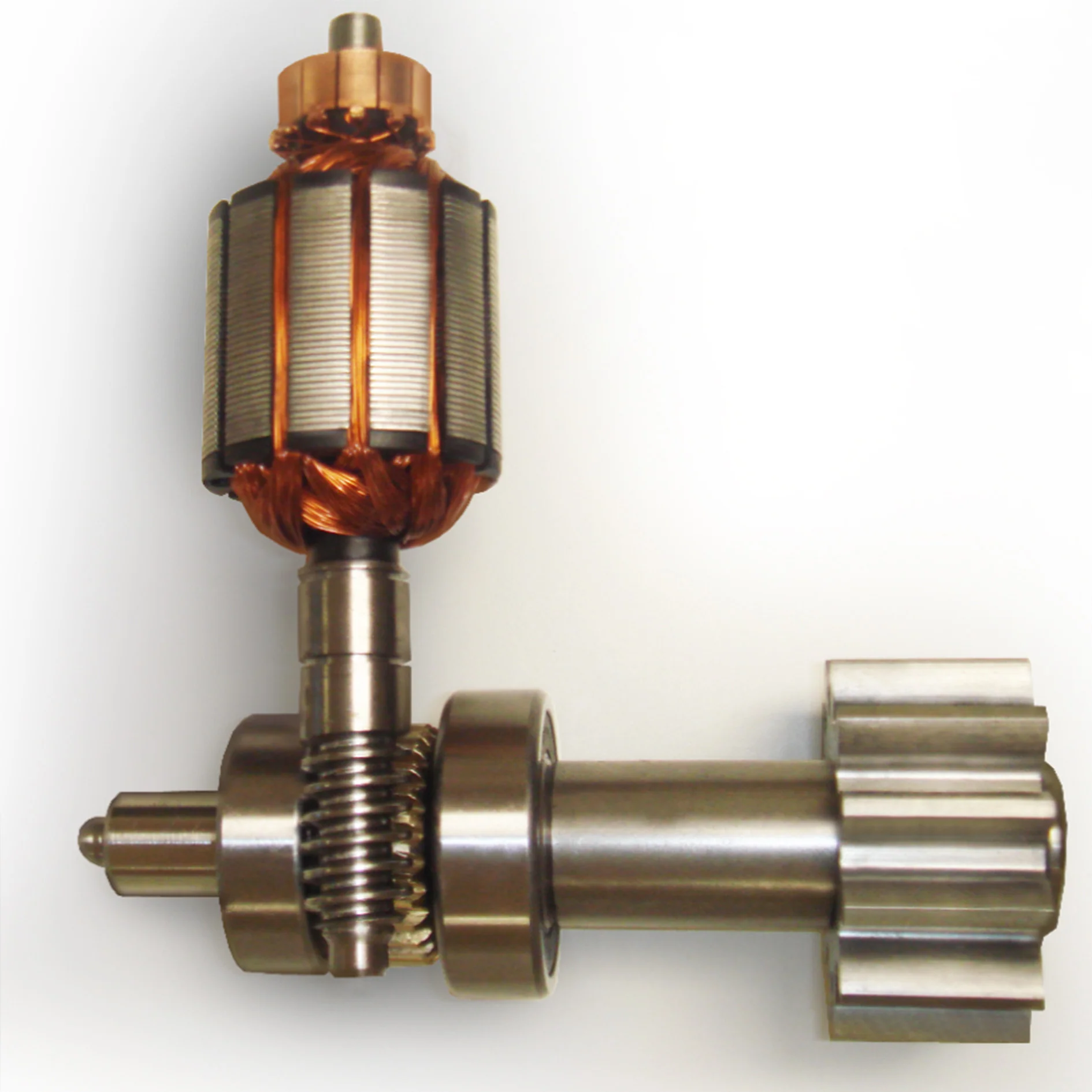

SLIDE 443 M 12V Motor Technical Data

Motor power supply	12V dc
dc motor power	140W
maximum thrust	1000N
Speed	10m/min
Gate weight length up to	400 kg
Operating temperature	20°C/+60°C
Maximum duty cycle	continuous use
Magnetic limits	√





CTH43 ELECTRONIC BOARD TECHNICAL DATA



Main AC power supply	230V (110V on demand)
System Operating Voltage	12V
Stand-by consumption	0.007A
Protection fuse on board	√
Transformer protection fuse	0.8A T(1.2A T)
Toroidal transformer wattage	105W
System operating voltage	12V
Radio receiver	2 channels rolling code
Radio codes storage capacity	10
Radio transmission protocol	DUCATI rolling code 433MHz
Radio remote codes learning	self-learning
On board antenna	√
Input external antenna	√
Automatic closing pause time	√ adjustable by trimmer 1-100 sec
Compatible with emergency Back-up battery	√ only by adding the complementary CMBAT 2.0 battery charger + one  12V 7A battery
Motor power adjustment by potentiometer	√
ARS automatic reverse system on obstacle detection	√
SOFT STOP Double speed with soft stop	√
Electric Limits	√ magnetic
Safety photocells input	√ NC
START operating cycle (total opening  cycle) input	√NO
START operating cycle (pedestrian partial opening cycle) input	√NO
Emergency STOP input	√ NC
Blinker output	12V up to 10W

Manual

CLICK HERE to download the SLIDE  instruction manual
