HC819

Description

Ducati's entry-level package. The most uncomplicated gate opener.

Double wing swing gate up to 2 x 1,8m/ 6ft each wing (Total gate length up to 4m/13ft)

• Ducati's modern design DC gate opener
• Featuring DUCO SAFE: obstacle detection safety system guarantees maximal safety of use to your family. Original Made in Italy.
• For those who desire a very uncomplicated gate opener, easy to be installed
• Ideal for  double wing swing gate

Kit Contents

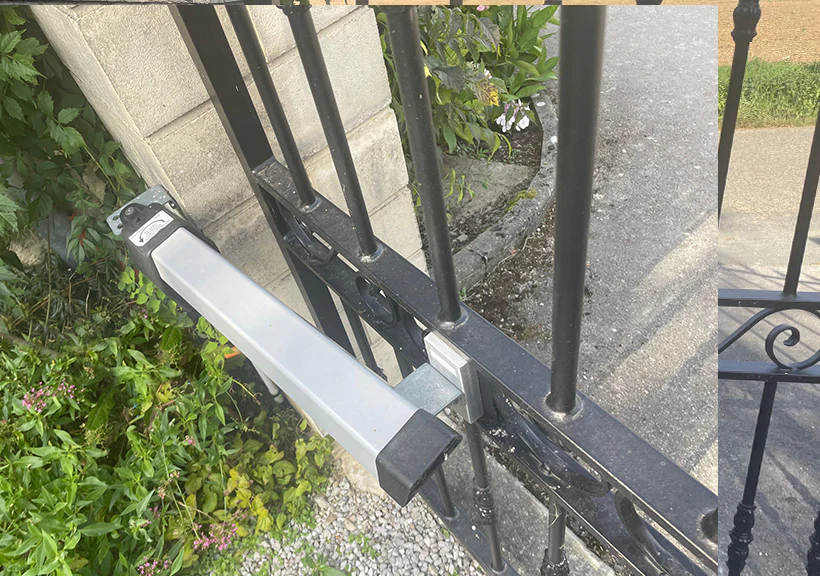

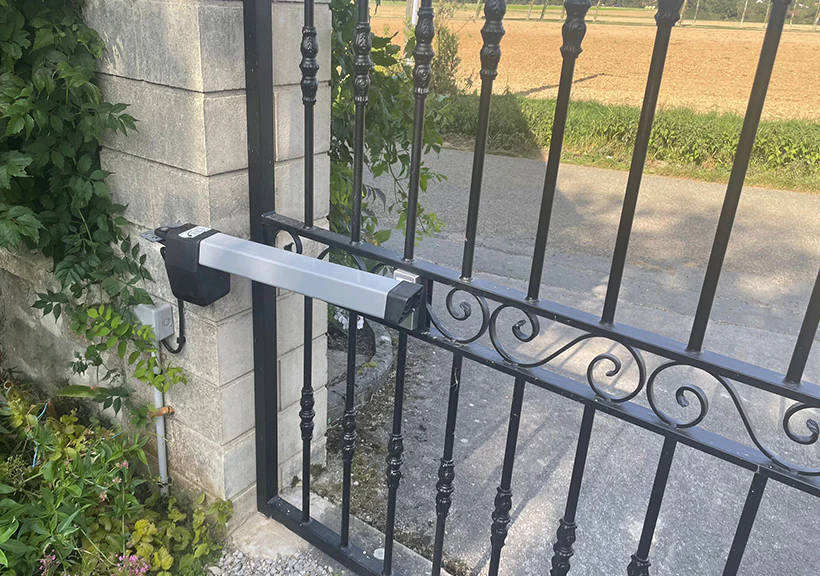

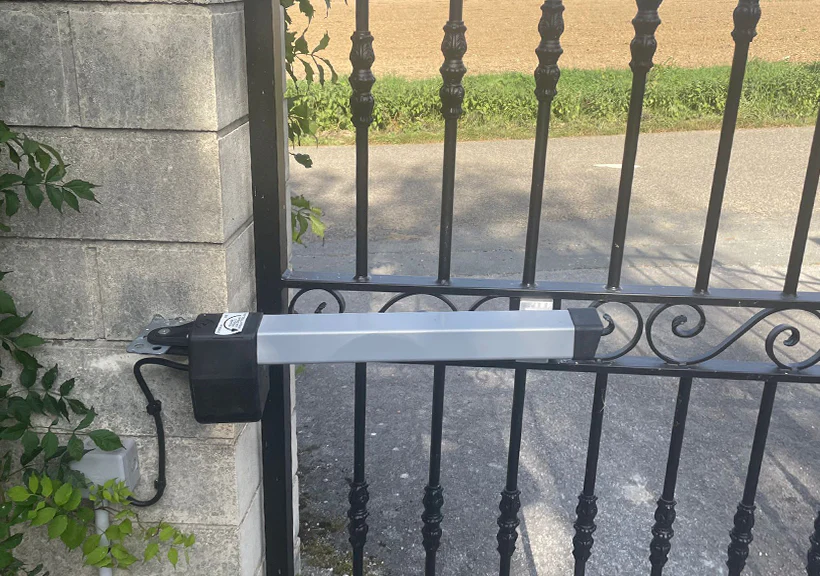

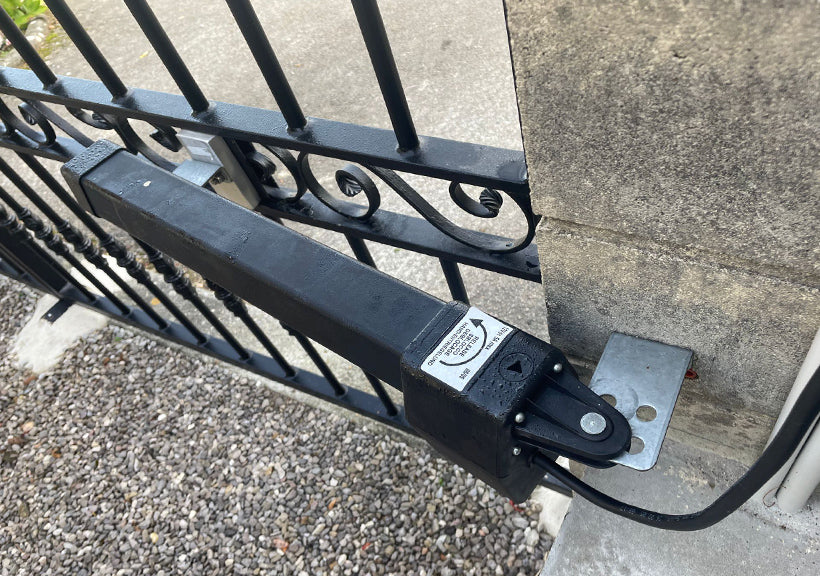

• 2x HC418 - 400mm stroke 12V  electromecanic irreversible actuators supplied with 1 m outdoor use cable H05RN-F 2 x 1mmq

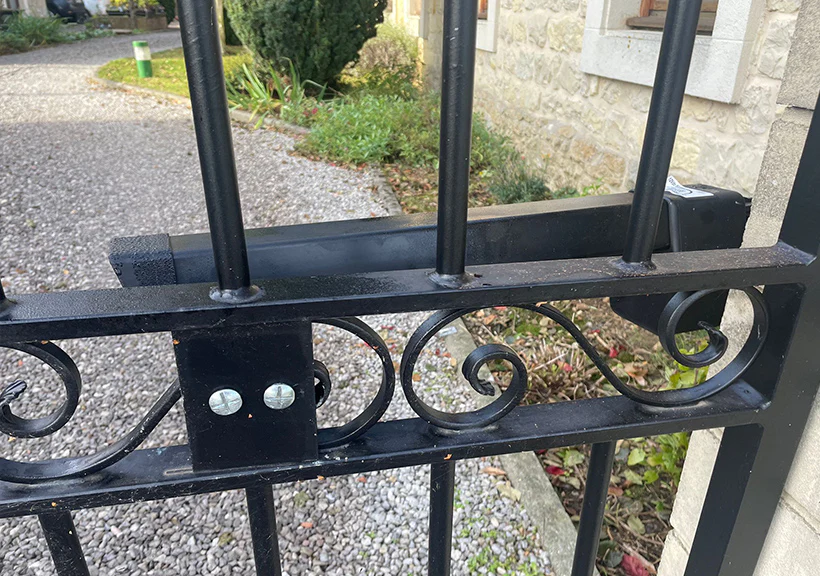

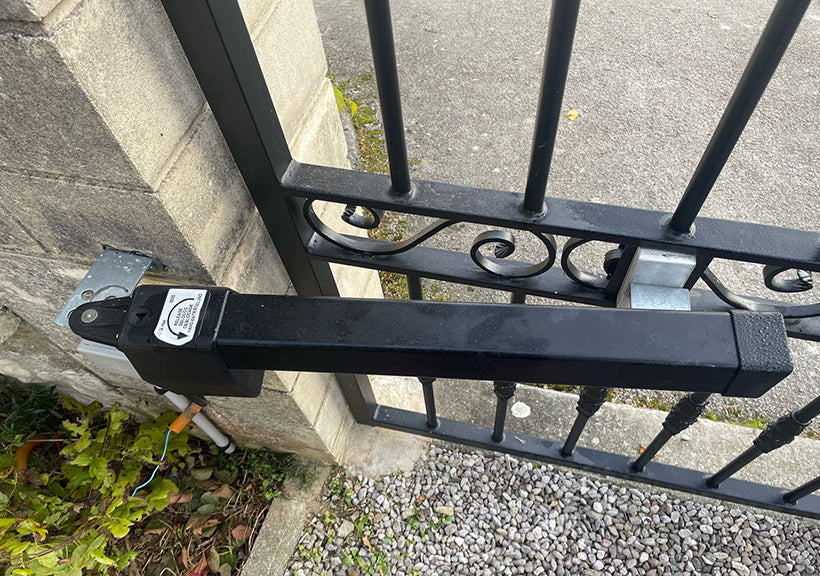

• set of actuator's fixing brackets

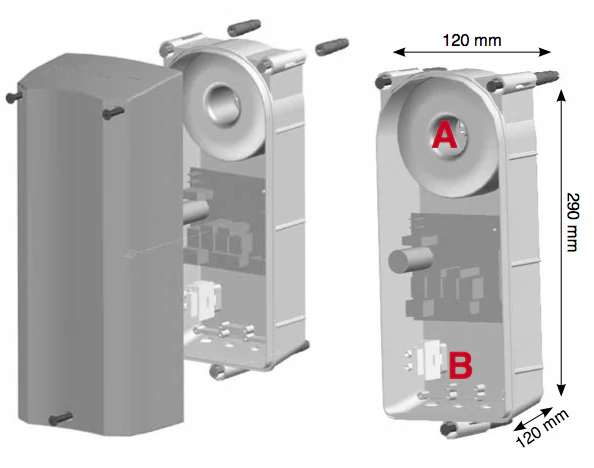

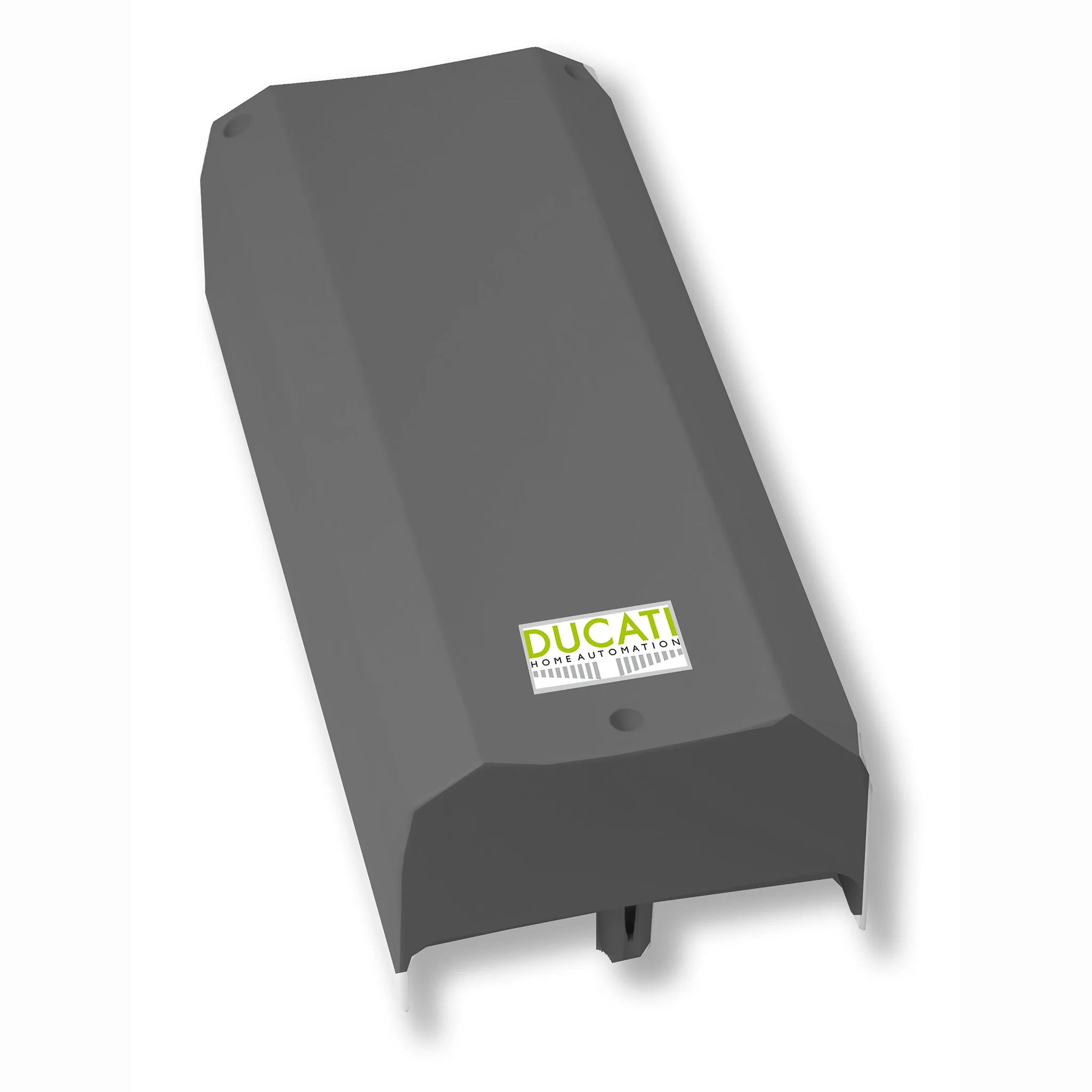

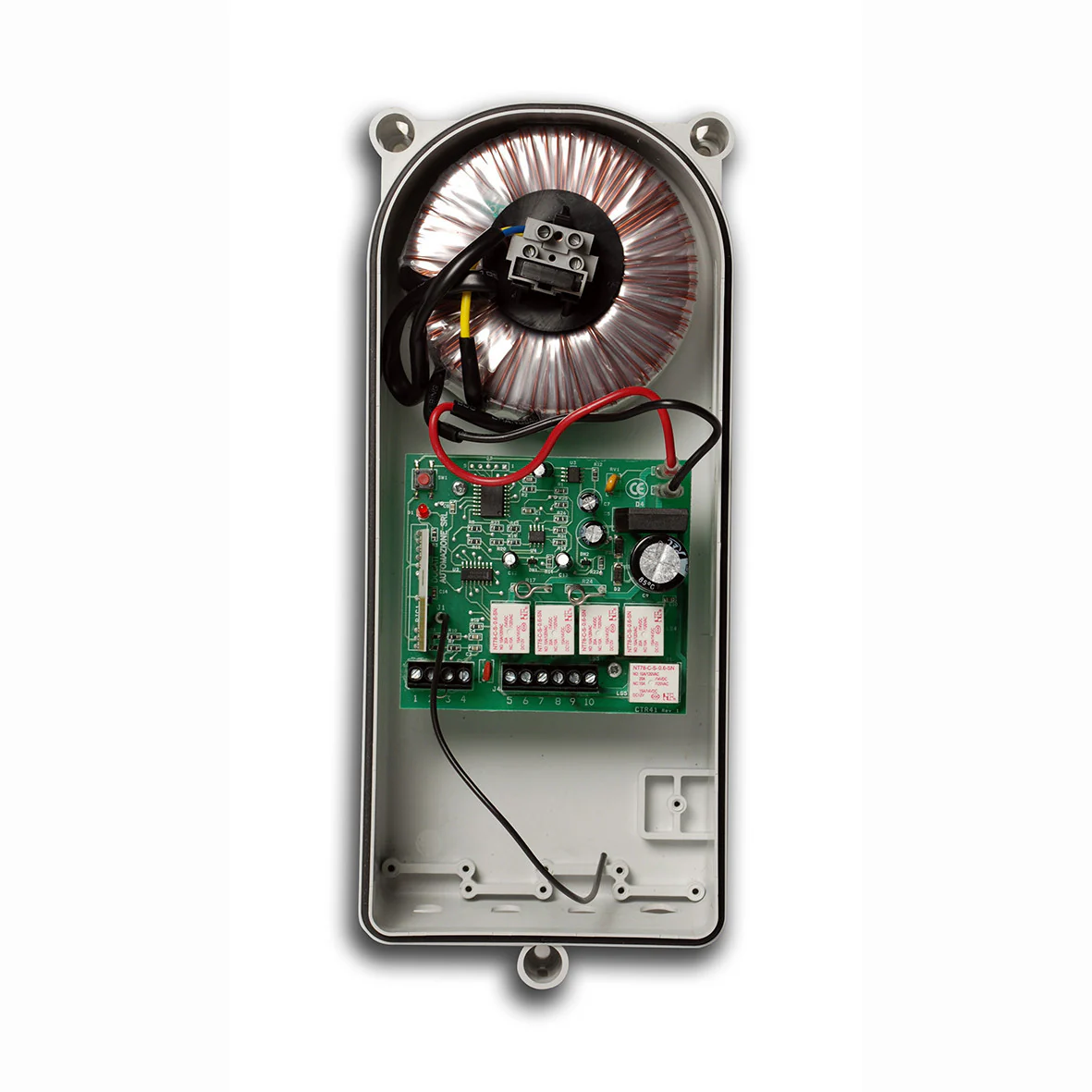

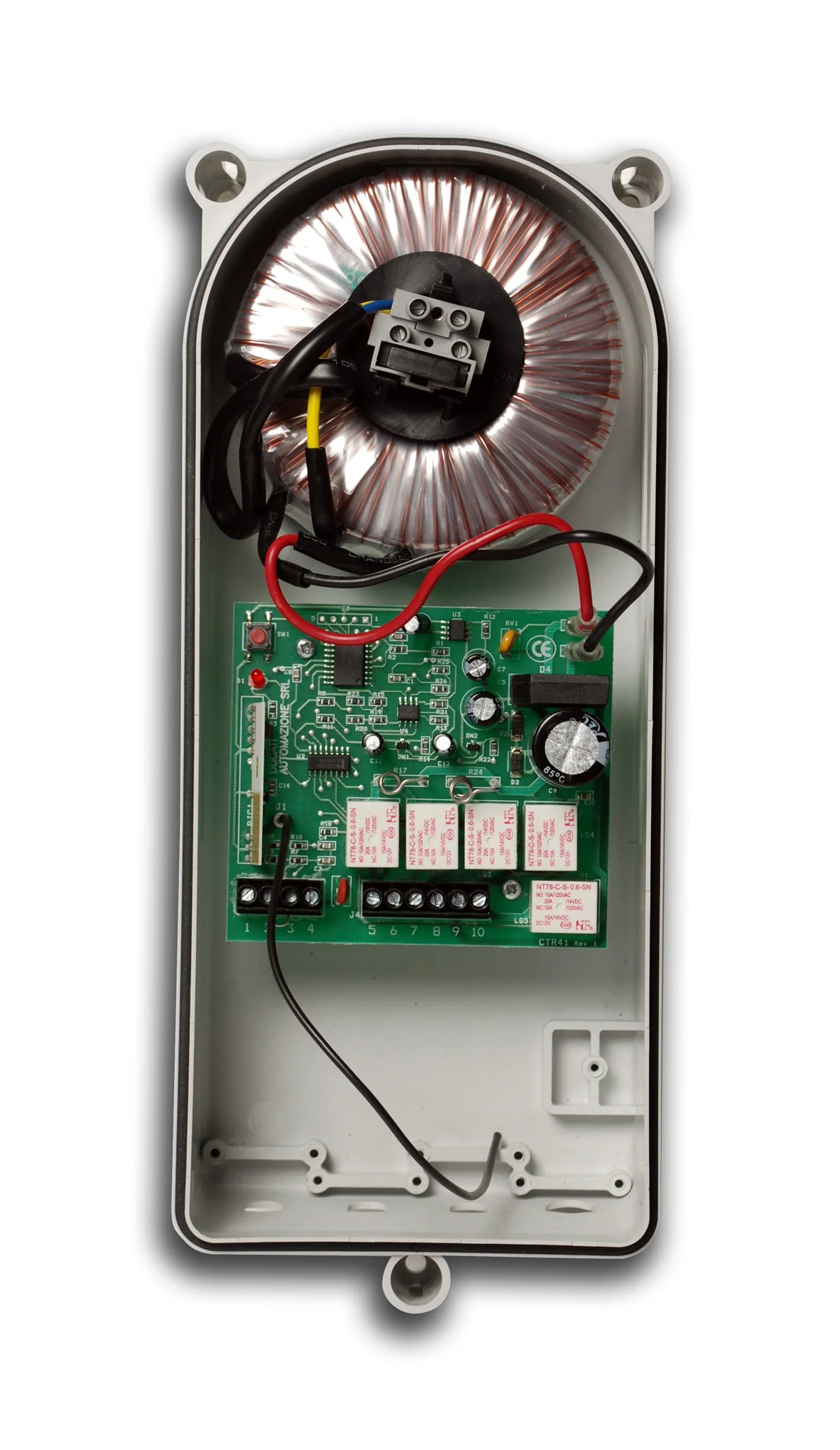

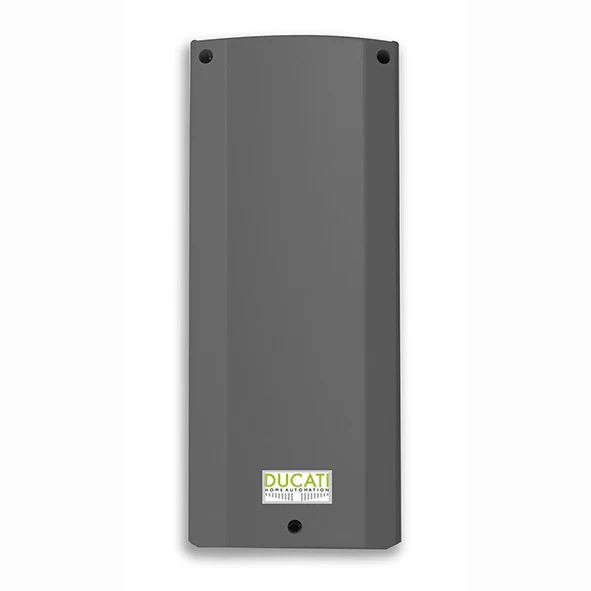

• 1x KONTROL 7851 - small control box with electronic board CTH41, toroidal transformer, integrated radio receiver & antenna cable

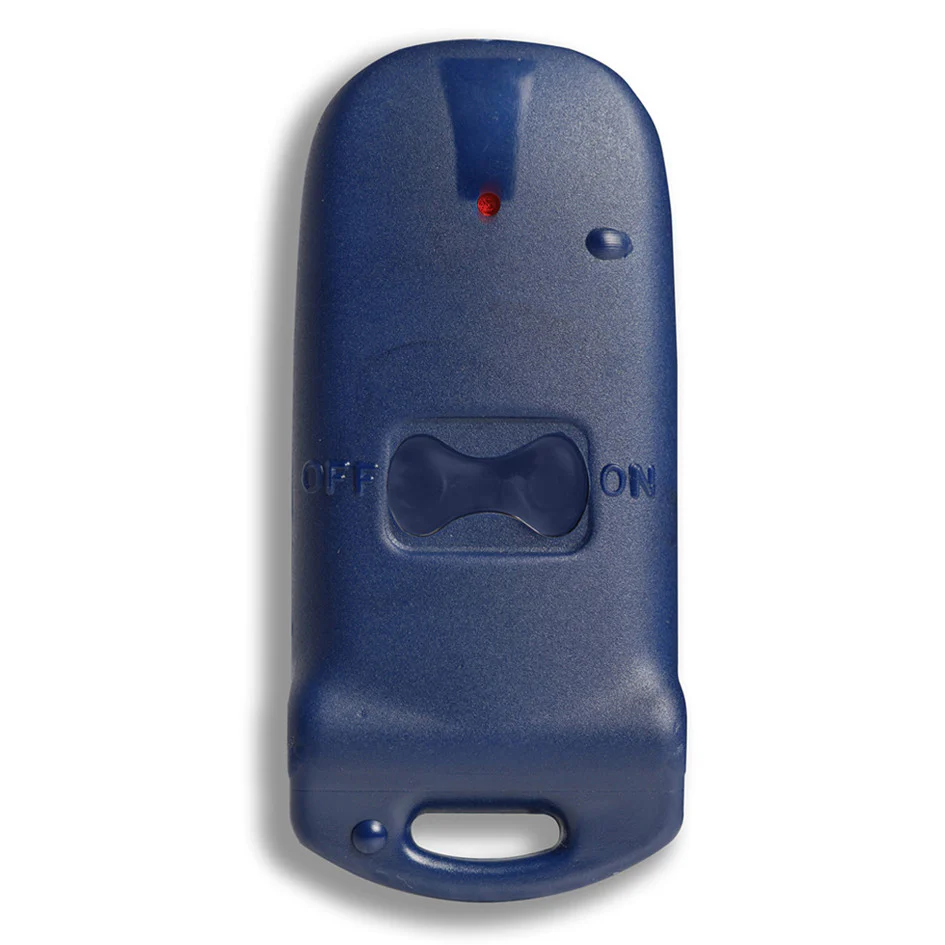

• 2x 6203 R - 2 buttons 433,92 Mhz  rolling coded remote controls

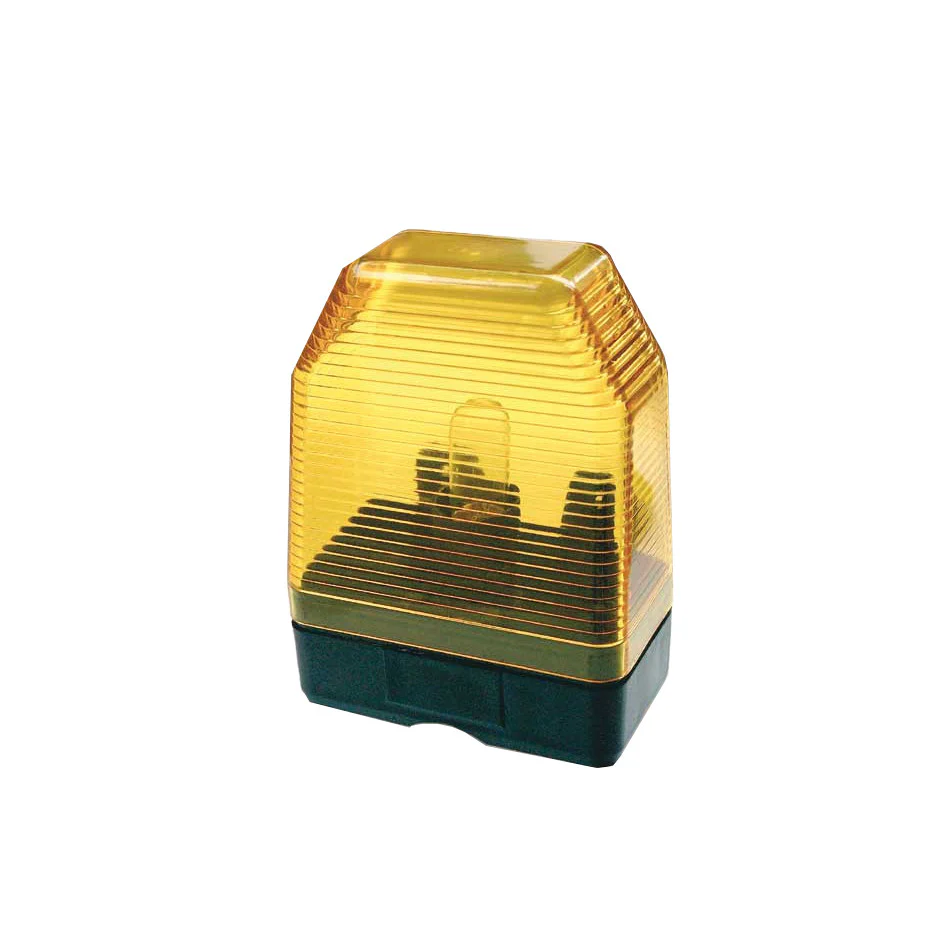

• 1x HC7500 - blinking light 12V

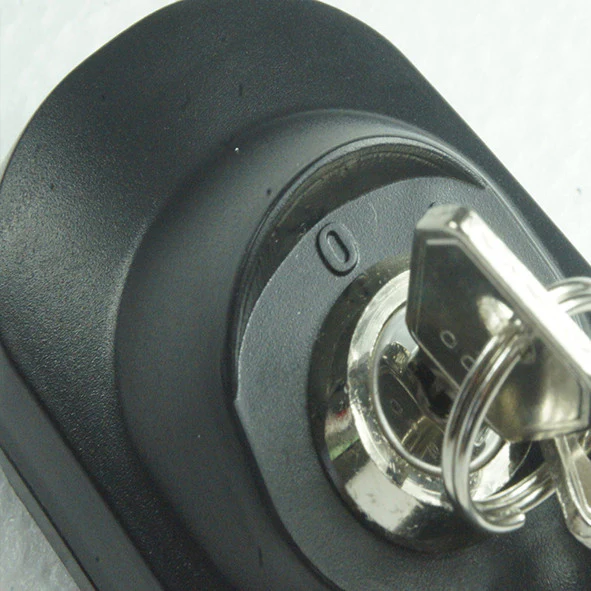

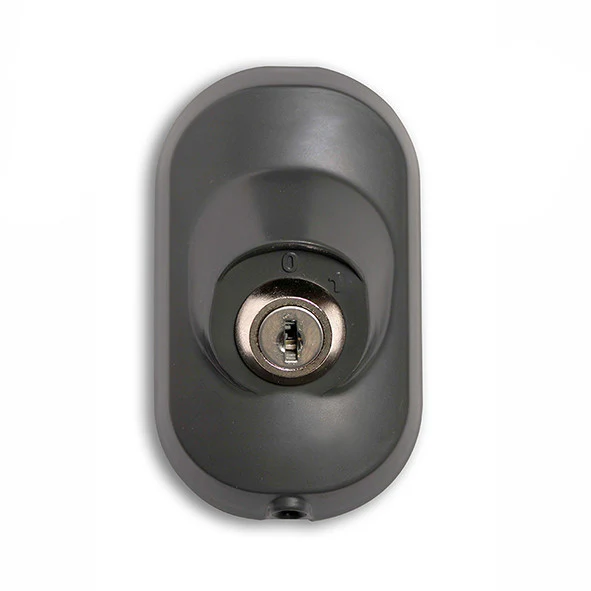

• 1x SW5000 - key switch
• 1x key for manual emergency release
• 1x instruction manual

Features

This classic DUCATI  "vintage" design ENTRY LEVEL gate operator features simples and basic functions for an easy installation with no adjustments needed.

For those who  do not require advanced settings but  want a safe, reliable simple gate opener for small gates:

• Highly reliable opener: can work in continuous cycles  without overheating

• Features 2 working mode options: step by step ( push to open & push to close) or automatic closing with fixed pause time 30 sec.

• Small control unit with integrated toroidal transformer,  simple electronic board with onboard radio receiver & antenna cable

• Easy  self-storing  of the remotes controls by pushing one button

• Made in Italy - All components are manufactured in the company to warranty high quality and reliability.

• After sale service and assistance provided directly by manufacturer without intermediaries in order to provide quick and immediate solution to any demand.

• Quick and easy installation

• The gate is automatically locked in closed position (irreversibile system).

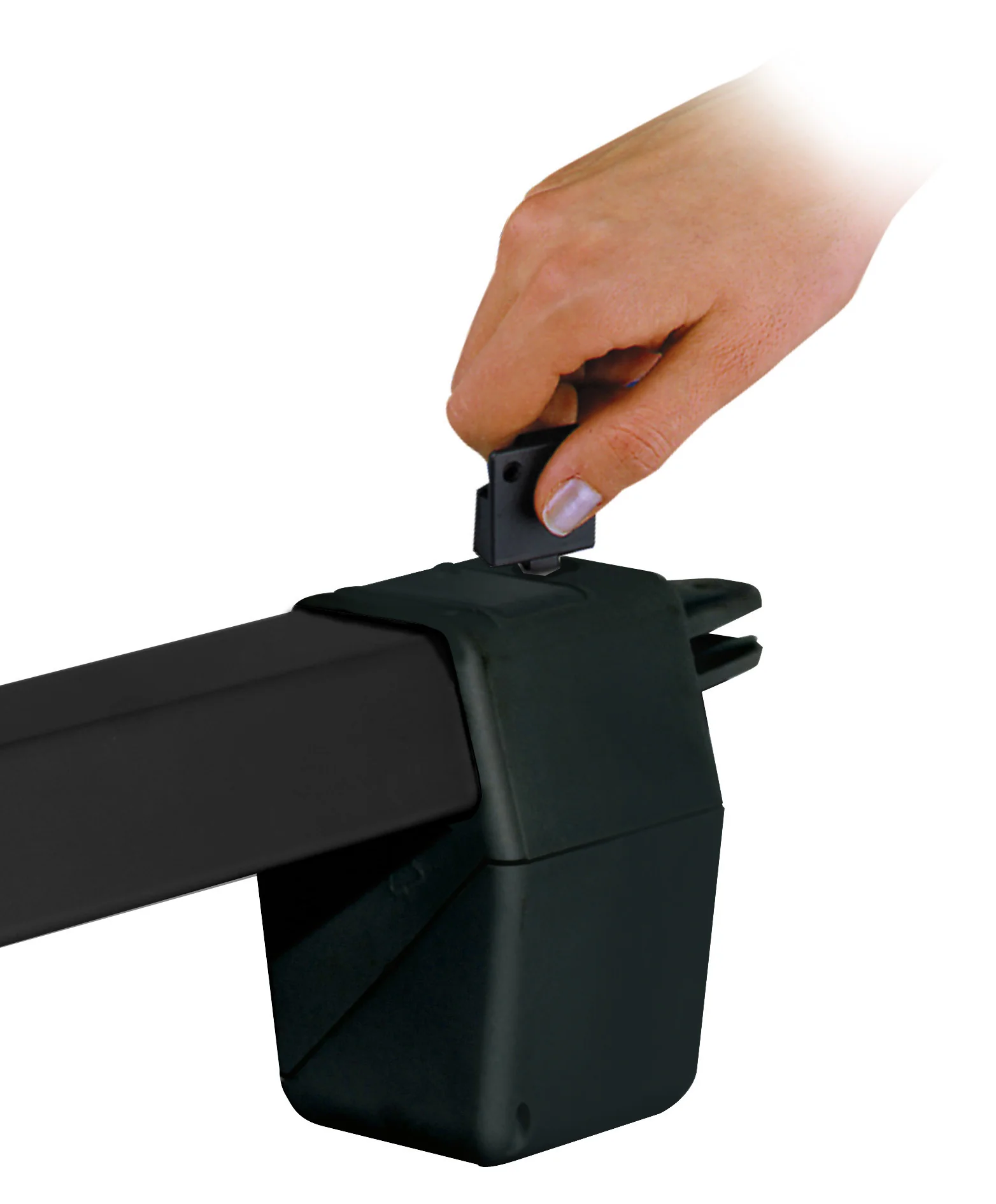

• Manual release system by universal triangular key

• CE conformity: product certified on all points of the current European regulations. Notify body as NEMKO / INTERTEK test reports & certificates available on request

• Safety is ensured by an sensitive amperometrical obstacle detection system and pressure control. Photocells ( safety beans) are no longer mandatory. Photocells  are an optional accessory that can be added to prevent scratches to the painting of vehicles crossing while gate is closing.In compliance with EN norms EN13241-1: 2003 + A1 ( April 2011 ) EN12453 : 2002 EN12445 : 2000)

SELF LOCK TECHNOLOGY

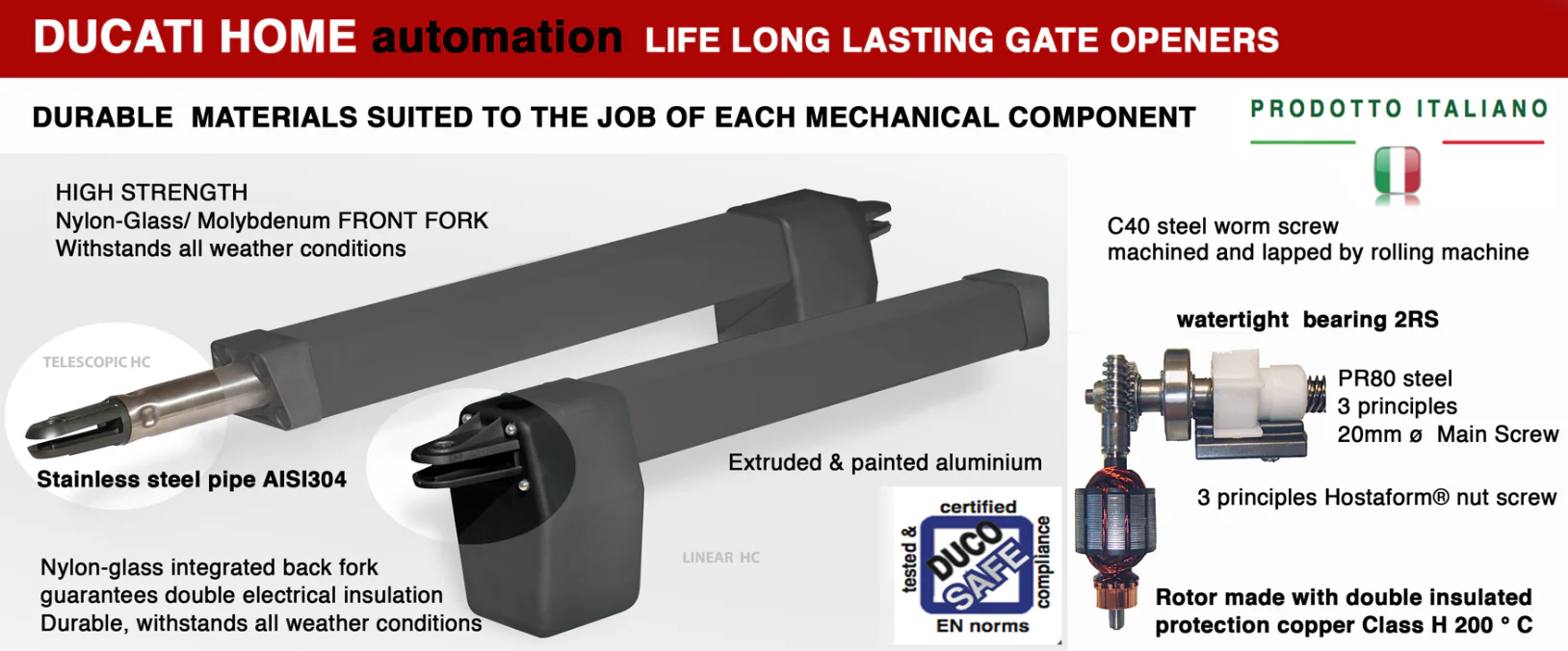

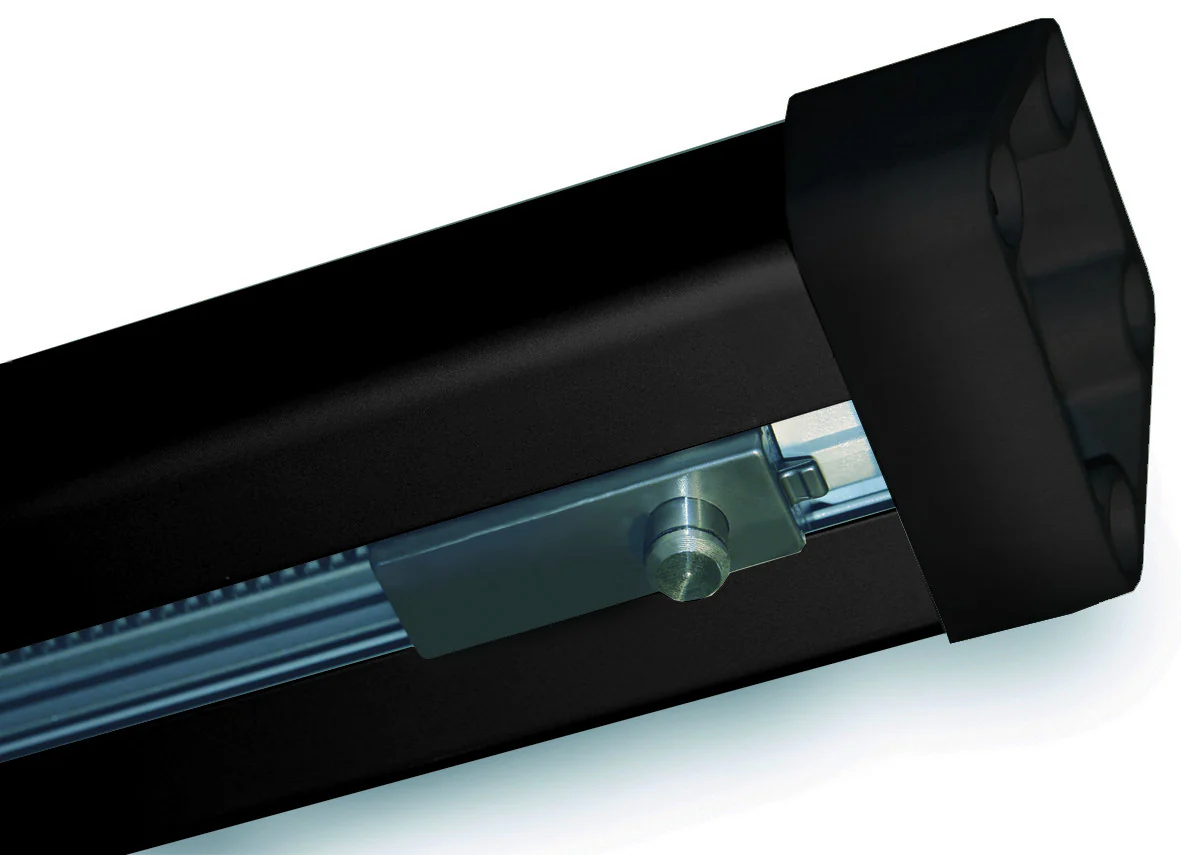

The self-locking properties of the spindle increase the protection against a dangerous and unauthorized “pressing” of the gate and the otherwise necessary e-locks for the final positions can be omitted. A massive 20 mm diameter three principle steel spindle made of PR80 steel ensures long and reliable operation

Technical data

Here Technical data

ACTUATOR  TECHNICAL DATA

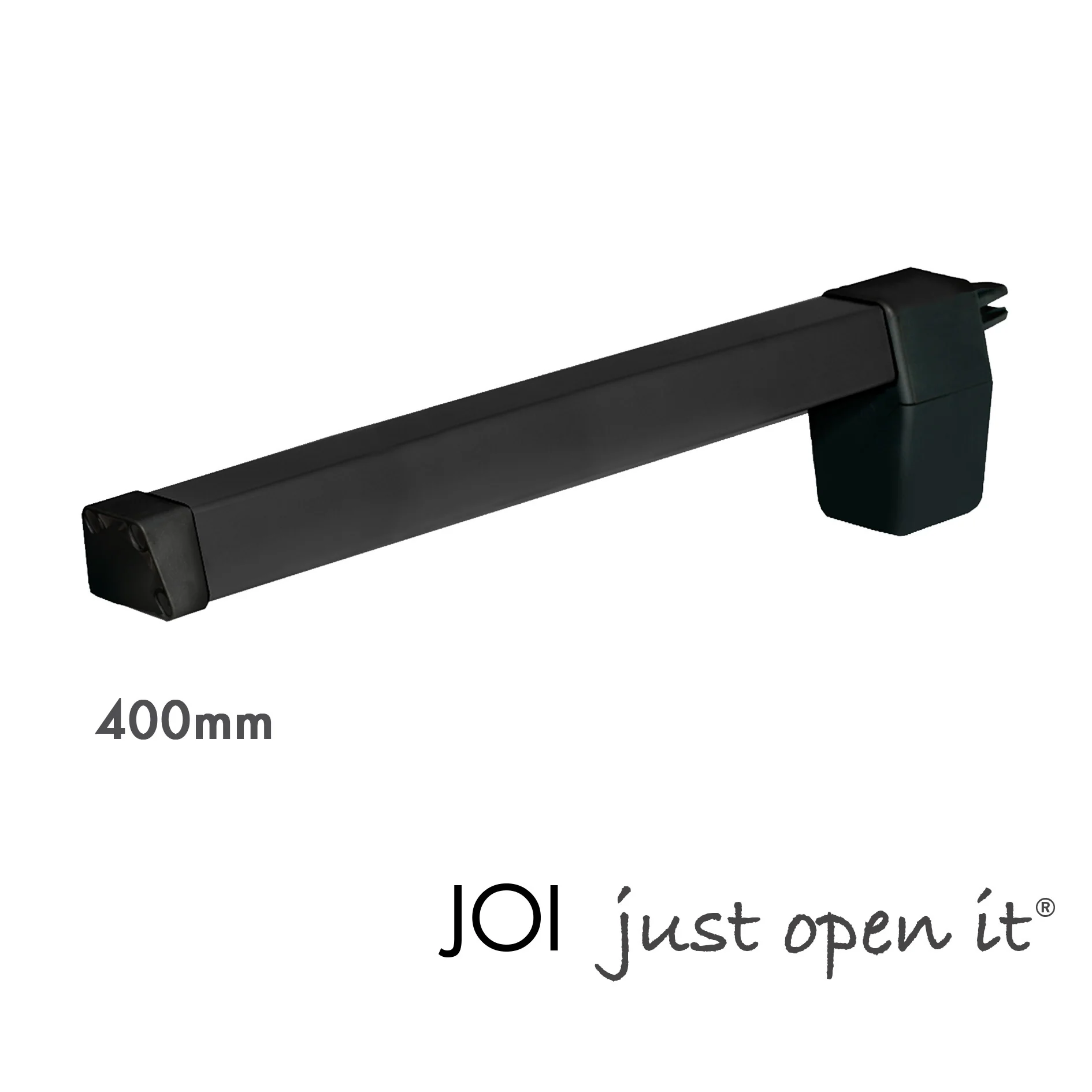

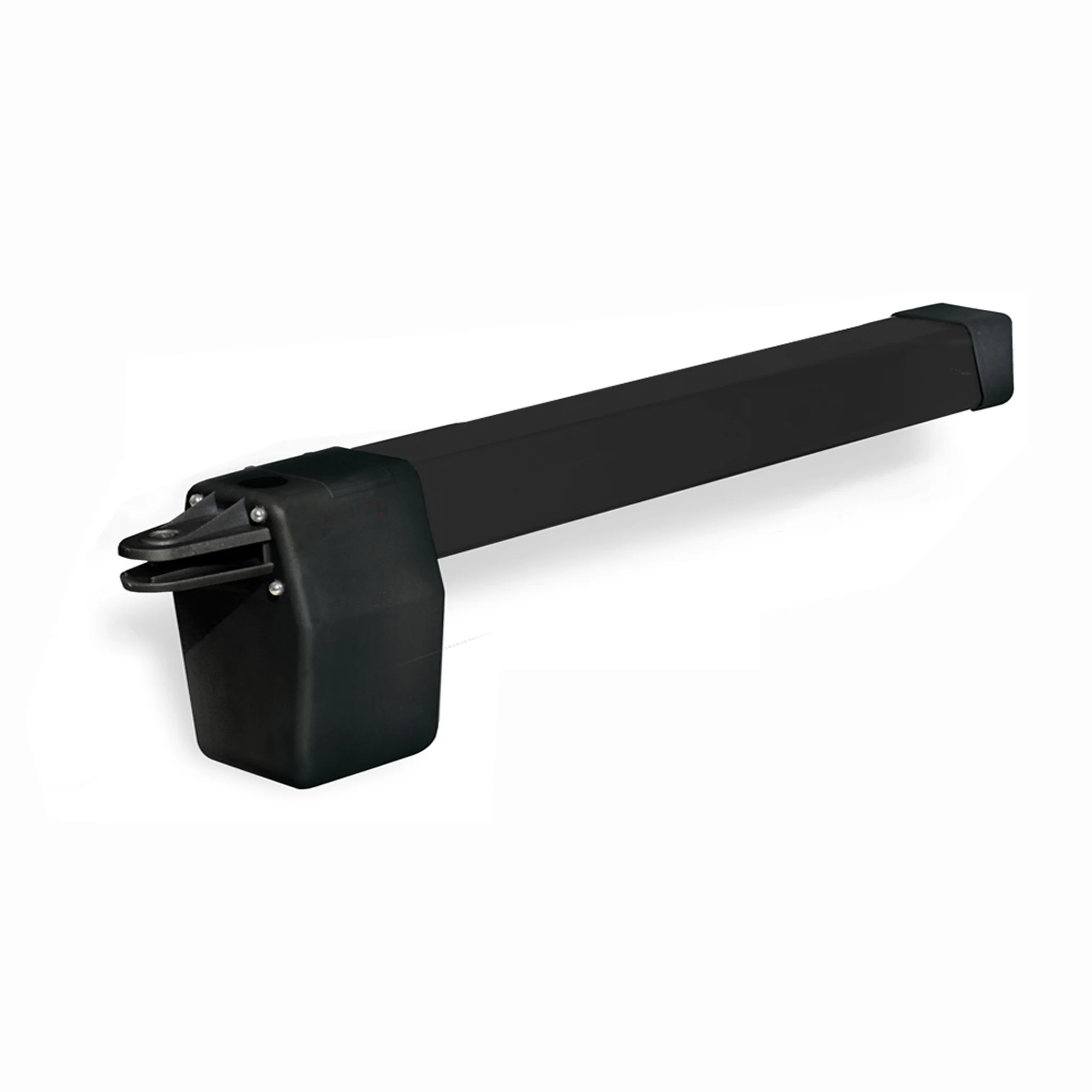

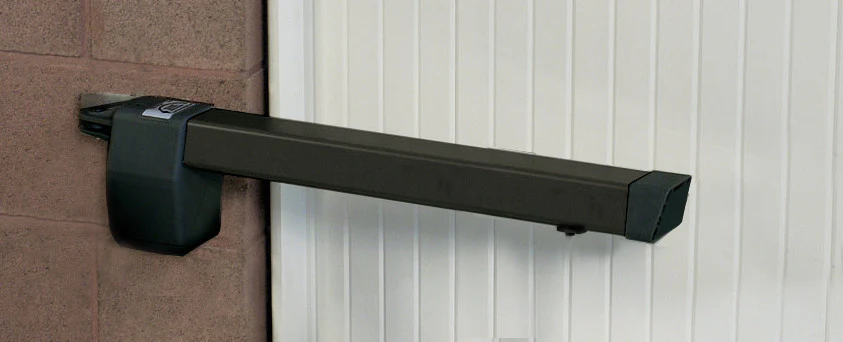

ELECROMECHANICAL  ACTUATOR HC418

Motor power supply	12V
dc motor	60W
max pushing & power	1200N
Stroke	400mm
motor speed	1,5 cm/sec
telescopic actuator	-
working cycles limit	continuous use/ no limits
working temperature	-20°C/+50°C
max wing length	2m/6,5ft   each leaf
max.wing weight	200kg/440lb each leaf
max. opening angle	125°
automatic wing lock	√ irreversible actuator
manual release system	√ by triangular key
Max "C" measure (see pillar installation diagram hereunder) to install the actuator avoiding any masonry work on the pillar	11 cm
Compatible with  gate opening towards outside	√

NOTE: the actuator will stop by amperometric detection system: it therefore requires  mechanical limits to be installed on the floor to stop the gate wing in the open and closed position. Special actuator model HC418 in "FC" version are featured with on-board mechanical limits for the open & closed  wing position.

CTH41 ELECTRONIC BOARD TECHNICAL DATA

Main power supply	230-240V /50-60Hz or (110V/60Hz) (both variant of toroidal transformer are available. Select the desired version while ordering)
toroidal transformer's Watts	105W
protection fuse	Automatic
transformer protection fuse	0,8AT (1,2AT for 110V transformer)
use on single or double wing gate	2 Wings gate only
output services	12V
stand-by power consumption	8mA
radio receiver	1 channel
remote controls channels storage capacity	10 codes
radio transmission protocol	DUCATI rolling code
radio frequency	433,92MHz
remote control automatic learning	√
On board antenna	√
external antenna input	-
automatic closure working mode	√ with adjustable pause time up to 30 sec.
step by step working	√ one pulse to open; one pulse to close
motor power adjustment	-
Obstacle detection safety system(DUCO SAFE)	obstacle detection
In compliance with EU-CE norms	√
timerized courtesy light output	-
flashing light output	√ max. 10W 12V lamp. blinks quickly while closing, blinks slowly while opening
electric lock output	-
safety beam-photocells input (NC contact)	√ NC normally closed contact
A full cycle START input(NO contact)	√
pedestrian cycle START input ( N contact)	-
output for optional additional back-up battery charge management & module CMBAT	-

Manual

CLICK HERE to download the full  instruction manual

CLICK HERE to  download the HC418 actuator's diagram

CLICK HERE to download CTH41 board diagram

6203Roll remote control instructions
